Opticon OPR-3101
POSMarket SKU: Z2119
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

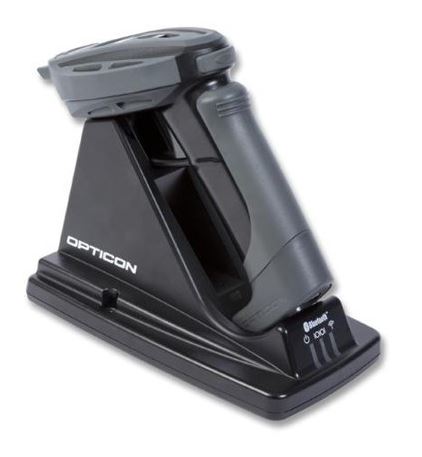

Rugged Portable Bluetooth Barcode Laser Scanner
Product Overview
The OPR3101, an extremely rugged, portable Bluetooth laser scanner, quickly and efficiently scans 1D barcodes for retail, point-of-sale (POS), inventory or logistics applications.
Features
- Portable Bluetooth barcode laser scanner -100 scans/second
- Easily reads 1D barcodes for retail, POS, inventory or logistics applications
- Compact size and weight - 2.7'' W x 6.5'' L x 6.1'' D and 10.2 ounces
- Rugged- survives 6 foot drop onto concrete
- Rated at IP54 - sealed against dust and moisture
- Trigger modes: manual and auto-trigger
- Communication interface to charging cradle with serial or Bluetooth connection
- Two-year warranty
Product Specifications
| Operating indicators: | Visual: 1 large LED (red/green/blue) Non-visual: Buzzer |
| Communication: | Bluetooth: Ver. 1.2, SPP, output power class 2, range up to 10 m, 1 to 1 connection, master/slave mode, authentication and encryption |
| Barcode scanner Optics: | Light source: 650 nm visible laser diode Scan method: Bi-directional scanning Scan rate: 100 scans/sec Trigger mode: Manual, auto-trigger Reading pitch angle: -35 to 0°, 0 to +35° Reading skew angle: -50 to -8°, +8 to +50° Reading tilt angle: -20 to 0°, 0 to +20° Curvature: R>15 mm (EAN8), R>20 mm (EAN13) Min. resolution at PCS 0.9: 0.127 mm / 5 mil Min. PCS value: 0.45 |
| Barcodes: | 1D: JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Korean Postal Authority code 2D code: Composite codes, MicroPDF417, PDF417 |
| Physical: | Dimensions (w x h x d): 68 x 165 x 155 mm / 2.68 x 6.50 x 6.10 in Weight body: Ca. 290 g / 10.2 oz (incl. battery) |
| Durability: | Temperature in operation: -10 to 60 °C / 14 to 140 °F Temperature in storage: -20 to 60 °C / -4 to 140 °F Humidity in operation: 5 - 95% (non-condensing) Humidity in storage: 5 - 95% (non-condensing) Ambient light immunity: Fluorescent 4,000 lx max,Direct sun 80,000 lx max, Incandescent 4,000 lxmax Drop test: 2 m / 6.5 ft drop onto concrete surface Vibration test: 10 - 100 Hz with 2G for 30 min Protection rate: IP 54 |
