Opticon OPR-3004
POSMarket SKU: Z2112
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

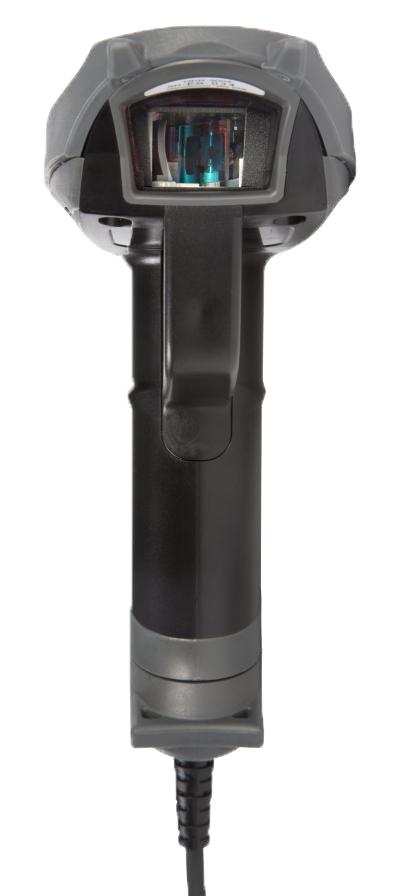

The OPR3004 is an ergonomic and rugged long range handheld scanner that scans with confidence, delivering reliability and durability in harsh conditions, extreme temperatures and humidity. This long range scanning device features a rubberized pistol grip and trigger guard, providing the user comfort during use. The OPR3004 is sealed up to IP 54 standards for operation in dirty and harsh conditions. This device, withstanding multiple drops up to 2 meters onto concrete, is able to scan from a distance of 60 cm up to 2.8 meters.
Product Overview
- Long-range laser barcode scanner – scan range is 23.6 to 110 inches.
- Easily reads 1D barcodes for retail, POS, inventory or logistics applications
- Compact size and weight – 2.7" W x 6.1" L x 5.9" D and 7.4 ounces
- Survives 6 foot drop onto concrete
- Rated at IP54 – sealed against dust and moisture
- Trigger modes: manual and auto-trigger
- Communication interface: RS232, USB or keyboard wedge
- Two-year warranty protects your investment
Product Specifications
| Physical specifications | |
| Dimensions | 68 x 50 x 155 mm 2.68 x 5.91 x 6.10 in |
| Case material | ABS |
| Weight body | Ca. 210 g / 7.4 oz |
| Electrical specifications | |
| Voltage requirement | 5 V +/- 10 % (Keyboard Wedge and USB) 6 V +/- 10 % (RS232) |
| Current consumption | max. 130 mA (RS232), max. 125 mA (Keyboard Wedge and USB) |
| Optical specifications | |
| Light source | 650 nm visible laser diode |
| Scan method: Bi-directional scanning | |
| Scan rate | 100 scans/sec |
| Reading pitch angle | -20 to 0 Degree, 0 to +20 Degree |
| Reading skew angle | -55 to -10 Degree, +10 to +55 Degree |
| Reading tilt angle | -5 Degree to 0 Degree, 0 to +5 Degree |
| Curvature | R>15 mm (EAN8), R>20 mm (EAN13) |
| Reading width | depending on reading distance and barcode label resolution |
| Min. PCS value | 0.45 |
| Environmental specifications | |
| Temperature in operation | -10 to 60 Degree C / 14 to 140 Degree F |
| Temperature in storage | -30 to 70 Degree C / -22 to 158 Degree F |
| Humidity in operation | 5 - 95 % (non-condensing) |
| Humidity in storage | 5 - 95 % (non-condensing) |
| Ambient fluorescent light rejection | 4,000 lx max. |
| Ambient direct sun light rejection | 80,000 lx max. |
| Ambient incandescent light rejection | 4,000 lx max. |
| Shock drop test | 2 m / 6.5 ft drop onto concrete surface |
| Shock vibration test | 10 - 100 Hz with 2G for 30 min |
| Protection (dust and moisture, IEC529) | IP 54 |
