Opticon OPR-2001
POSMarket SKU: Z2072
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

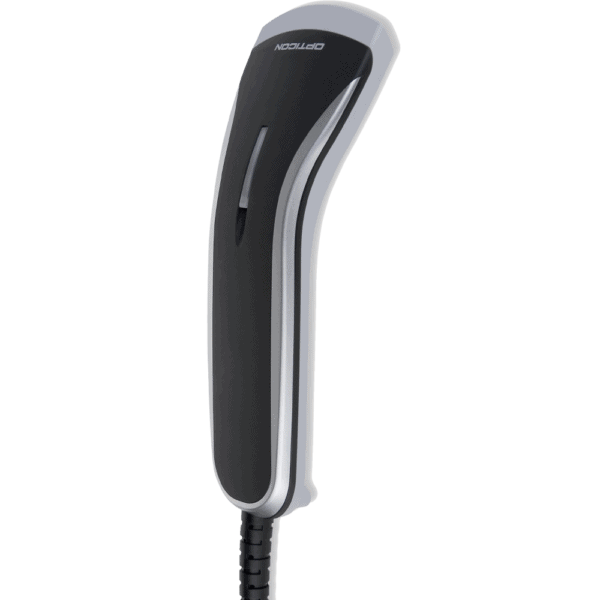

Opticon OPR-2001 Corded Laser Barcode Scanner. Features a compact and stylish yet lightweight design...
Product Overview
This sleek barcode reader from Opticon features a compact and stylish yet lightweight design. The OPR2001s uniquely ergonomic design and comfortable housing not only makes it a natural fit to your hand, but also gives it a comfortable feel.
This handheld scanner is lightweight, available in black and white, uses little space on your counter, and is easy to integrate with your system. The scanner comes with USB, RS-232, or Keyboard Wedge connectivity options.
Features
- Handheld Laser Scanner w/Stand
- Small form factor
- 100 scans/second
- The integrated auto trigger mode together with the dedicated stand enables hands-free operation
- Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
- Available in black and white
- Available in USB, RS232 and Keyboard Wedge interface
Product Specifications
| Light Source | 650 nm visible laser diode |
| Depth of field | 40 - 500 mm (res. 1.0 mm / 39 mil), 20 - 350 mm (res. 0.5 mm / 20 mil) 20 - 200 mm (res. 0.25 mm / 10 mil) 20 - 100 mm (res. 0.15 mm / 6 mil) 30 - 70 mm (res. 0.127 mm / 5 mil) at PCS 0.9, Code 39 |
| Scan Rate | 100 Scans/sec |
| Resolution | 0.127 mm / 5 mil |
| Pitch Angle | -35 to 0 Degrees 0 to +35 Degrees |
| Tilt Angle | -20 to 0 degrees 0 to +20 Degrees |
| Skew Angle | -50 to 0 Degrees, +8 to +50 Degrees |
| Indicators | 1 LED (red/green/orange) |
| Interfaces | RS232 - DB9 PTF connector with external power supply Keyboard Wedge - MiniDIN6 F/M connector USB - Ver. 1.1, HID/VCP, USB-A connector |
| Symbologies supported | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| Drop Specification | 1.5 m / 5 ft drop onto concrete surface |
| Vibration Test | 10 - 100 Hz with 2G for 1 hour |
| Environmental Sealing | IP42 |
| Supply Voltage | 5 V 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232) |
| Power Consumption | Max. 150 mA |
| Operating Environment | -5 to 50 C RH 20 - 85 % (non-condensing) |
| Storage Environment | -20 to 60 C RH 10 - 90 % (non-condensing) |
| External Dimensions (WxDxH) | Scanner 56 x 151 x 31 mm Stand 100 x 175 x 127 mm |
| Weight | Scanner 60 g (excl. Cable) Stand 115 g |
| Product Compliance | CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
Product Videos
