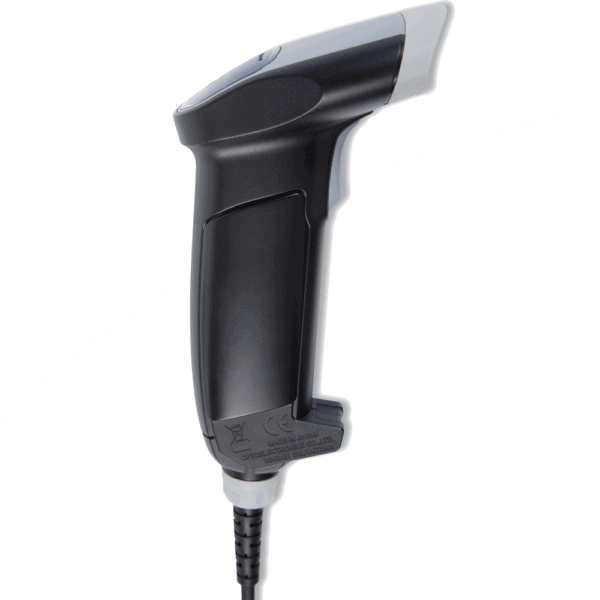

Opticon OPI-3201
POSMarket SKU: Z2090
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The OPI-3201 weighs only 80 grams, which is extremely light for a gun type imager. This solid scanner withstands drops up to 1.5 meter onto concrete. The 1.3 megapixel imager provides the versatility to read all standard 1D and 2D barcode symbologies from any orientation. The plug and play ability of the OPI-3201 allows the user to quickly connect and operate the scanner.
Product Overview
- Handheld 2D Imager
- Small form factor
- Up to 80 frames/sec
- The integrated auto trigger mode together with the dedicated stand enables hands-free operation
- Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
- Available in USB interface (Standard), RS232 and Keyboard Wedge interface (Special Order)
Product Specifications
| GENERAL | ||
| Type | Barcode scanner - handheld | |
| Packaged Quantity | 1 | |
| Manufacturer | Opticon | |
| INPUT DEVICE | ||
| Connectivity Technology | wired | |
| TTL Decoding | decoded | |
| OK Notification | LED indicator, beeper | |
| PRINTER | ||
| Barcodes | China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-UCC Composite, EAN/JAN, GS1 DataBar, IATA, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, Korea Post, MSI-Plessey, Matrix 2 of 5, MicroPDF417, NW-7, PDF417, Plessey, S-Code, Telepen, Trioptic Code, UPC | |
| BARCODE | ||
| Interface Type | USB | |
| Scan Field Width | 0.79 in - 19.69 in | |
| Interface | USB | |
| Light Source Wave Length | 650 nm | |
| Barcodes | China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-UCC Composite, EAN/JAN, GS1 DataBar, IATA, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, Korea Post, MSI-Plessey, Matrix 2 of 5, MicroPDF417, NW-7, PDF417, Plessey, S-Code, Telepen, Trioptic Code, UPC | |
| Print Contrast Signal (PCS) | 35% | |
| Skew (Degrees) | 50 | |
| Pitch (Degrees) | 35 | |
| Minimum Bar Width | 5 mil | |
| Min Scan Field | 0.79 in | |
| Max Scan Field | 19.69 in | |
| Features | triggered | |
| Decode Capability | EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, NW-7, IATA, ISBN, GS1 DataBar, Telepen, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, China Post, Korea Post, Trioptic Code, Plessey, EAN-UCC Composite, ISSN, S-Code | |
| Scan Mode | Single-pass | |
| OK Notification | Beeper, LED indicator | |
| Scan Speed | 100 scan / sec | |
| Connectivity Technology | Wired | |
| Scan Element Type | Visible laser diode | |
| TTL Decoding | Decoded | |
| MISCELLANEOUS | ||
| Color | black | |
| Color Category | black | |
| Included Accessories | stand | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 5 - 95% (non-condensing) | |
| Min Operating Temperature | 23 Degree F | |
| Max Operating Temperature | 122 Degree F | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | handheld | |
| Scan Mode | single-pass | |
| Scan Element Type | visible laser diode | |
| Scan Speed | 100 scan/sec | |
| HEADER | ||
| Brand | Opticon | |
| Product Line | Opticon | |
| Model | OPR-3201 | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| DIMENSIONS & WEIGHT | ||
| Width | 2.2 in | |
| Depth | 4.3 in | |
| Height | 5.9 in | |
| Weight | 2.82 oz | |
| INTERFACE REQUIRED | ||
| Type | USB | |
| Total Qty | 1 | |
| Connector Type | Type A | |
| CABLE DETAILS | ||
| Type | USB cable | |
| Form Factor | external | |
| Included Qty | 1 | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 2.82 oz | |
| SLOT REQUIRED | ||
| Type | none | |
| SHOCK & VIBRATION TOLERANCE | ||
| Drop Specification | 5 ft to concrete | |
| GENERAL | ||
| Manufacturer | Opticon | |
