Opticon M-10
POSMarket SKU: Z1786
13356: M-10. 2D Presentation Scanner, USB, Black

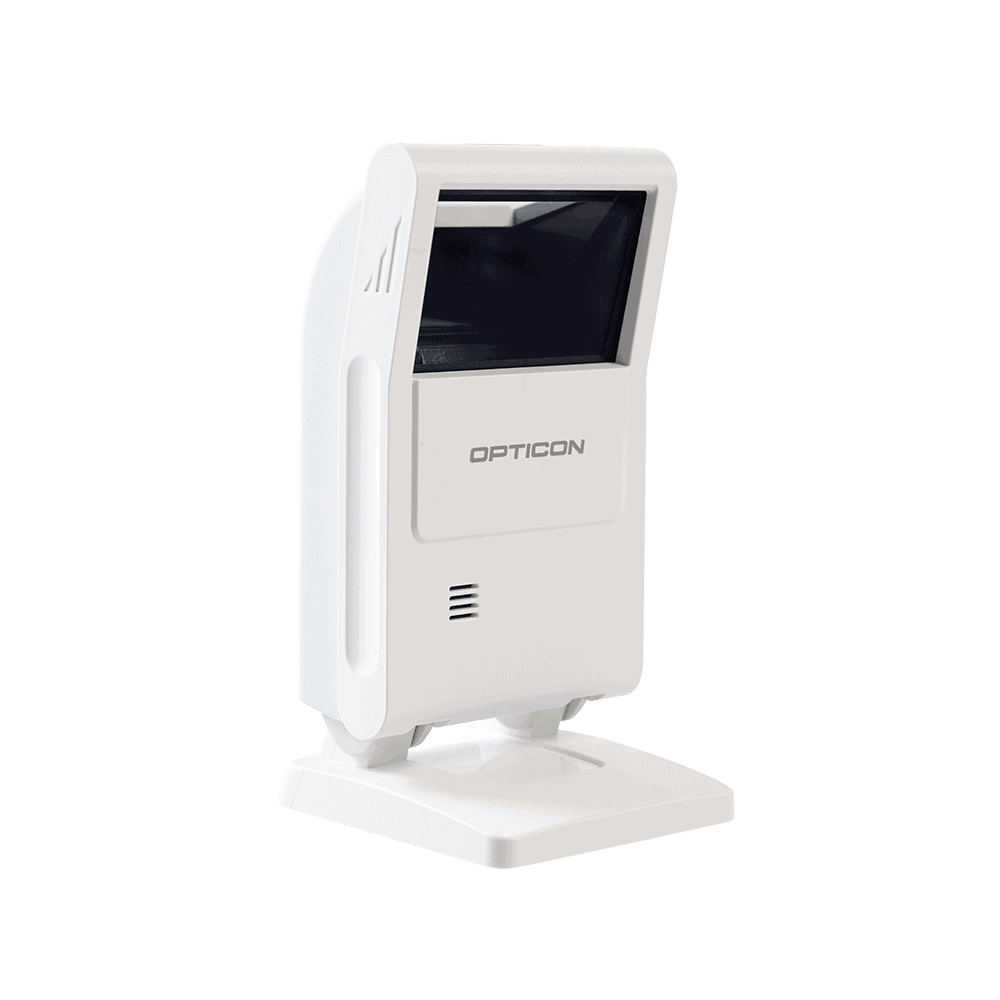

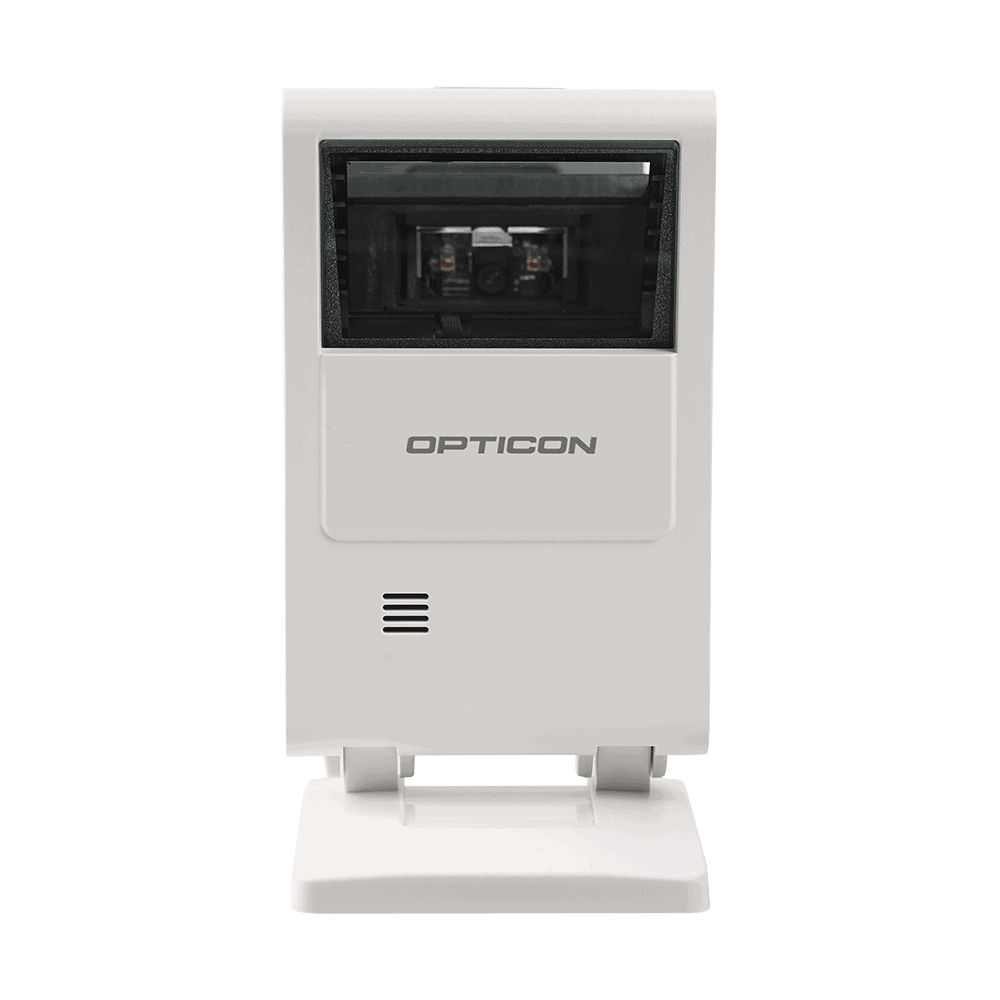

The M-10 is an omni-directional presentation scanner. Offering Opticon's high performance 2D CMOS Imager along with a well thought out ergonomic design, which allows the scanner being used in the hand or traditionally on a desk with its adjustable stand.
Product Overview
The barcode scanner is also durable with a rating of IP52 and a drop resistance of 1.5m upon concrete. The communication is USB and the black color makes it suitable for any counter.
Features
- 2D Imager
- Supports all common Linear (1D) bar codes and 2D Codes
- Omni-directional Scanning
- Imaging for mobile coupons
- High speed imaging for fast moving codes
- Automatic sensing or manual trigger options available
Product Specifications
| Scan Engine | Area Imager Scanner |
| Light Source | 2 Red LEDs Aiming and auto trigger activation light source 1 green LED |
| Scan Pattern | N/A |
| Scan Rate | Up to 60 fps |
| Motion Tolerance | 10 - 100 Hz with 2G for 3 hours |
| Image Capture | Windows Bitmap, JPEG |
| Capture Area | N/A |
| Contrast Ratio | N/A |
| Resolution | Min Resolution PDF: 0.169 mm QR code: 0.212 mm DataMatrix: 0.212 mm |
| Depth of field | Depth of field at Code 39: 35 - 60 mm / 1.38 - 2.36 in (0.127 / 5 mil), 0 - 140 mm / 0 - 5.51 in (0.254 / 10 mil), at QR code: 35 - 55 mm / 1.38 - 2.17 in (0.212 / 8.4 mil), 0 - 120 mm / 0 - 0.472 in (0.381 / 15 mil), at PDF417: 25 - 70 mm / 0.98 - 2.76 in (0.169 / 6.7 mil), 0 - 120 mm / 0 - 4.72 in (0.254 / 10 mil) |
| Tilt Angle | ca 180 Degrees |
| Pitch Angle | 50 Degrees |
| Skew Angle | 50 Degrees |
| Ambient Light Immunity | Fluorescent 10,000 lx or less, sunlight 100.000 lx or less |
| Symbologies supported | Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, USPS Postal code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Postal JPN, POSTNET 2D code: Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix, (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code |
| Programming Method | Manual: Reads special bar codes Automatic: Software commands through the RS-232 / USB interfaces Opticonfigure |
| Driver available | N/A |
| Indicators/Controls | Visual: 2 LEDs (green/blue/orange) Non-visual: Buzzer |
| Communication Type | RS232: DB9 PTF connector with external power supply, 300 bps~115200 bps USB: Full-speed 12Mbps (HID/COM) Voltage requirement: 5.7~6.3V |
| Interfaces | USB: OEM USB, USB COM, USB HID Keyboard RRS232: DB9 PTF connector with external power supply, 300 bps~115200 bps USB: Full-speed 12Mbps (HID/COM) Voltage requirement: 5.7~6.3V |
| Supply Voltage | 5.7~6.3V |
| Power Consumption | N/A |
| Drop Specification | 1.5 m / 5 ft drop onto concrete surface |
| Environmental Sealing | IP52 |
| ESD Protection | N/A |
| Operating Environment | -5 to 45 Degrees Celsius Humidity in operation: 20 - 85% |
| Storage Environment | -20 to 60 Degrees Celsius 20 - Humidity in storage: 90% |
| EMC/Safety Standards | CE, IEC62471-1, VCCI, EN55022, FCC Class-B |
| External Dimensions (WxDxH) | 72 x 70 x 139 mm |
| Weight | 250 g |
