Opticon L-50C

$116.26 (incl. GST)

POSMarket SKU: Z2068

13750: L-50C Scanner. USB Interface, Includes stand

Opticon L50C powerful linear CCD Imager. Reads all common 1D barcodes, 300 scans/second including high resolution barcodes..

Product Overview

The Opticon L-50 Series comes in three different editions, making this product custom to your everyday need. The L-50R comes with a 1D laser scanner, the L-51X has a 2D engine, which can be found here, and the L-50C has a CCD scanner. All the L-50's come with a complimentary stand while the L-50R also comes with an exchangeable USB/RS-232 cable, USB (HID), RS232 or Keyboard Wedge can be chosen as a communication interface. The product is also built to withstand drops from 1.5 meters onto concrete and is IP42 with a long cable of 2 meters.

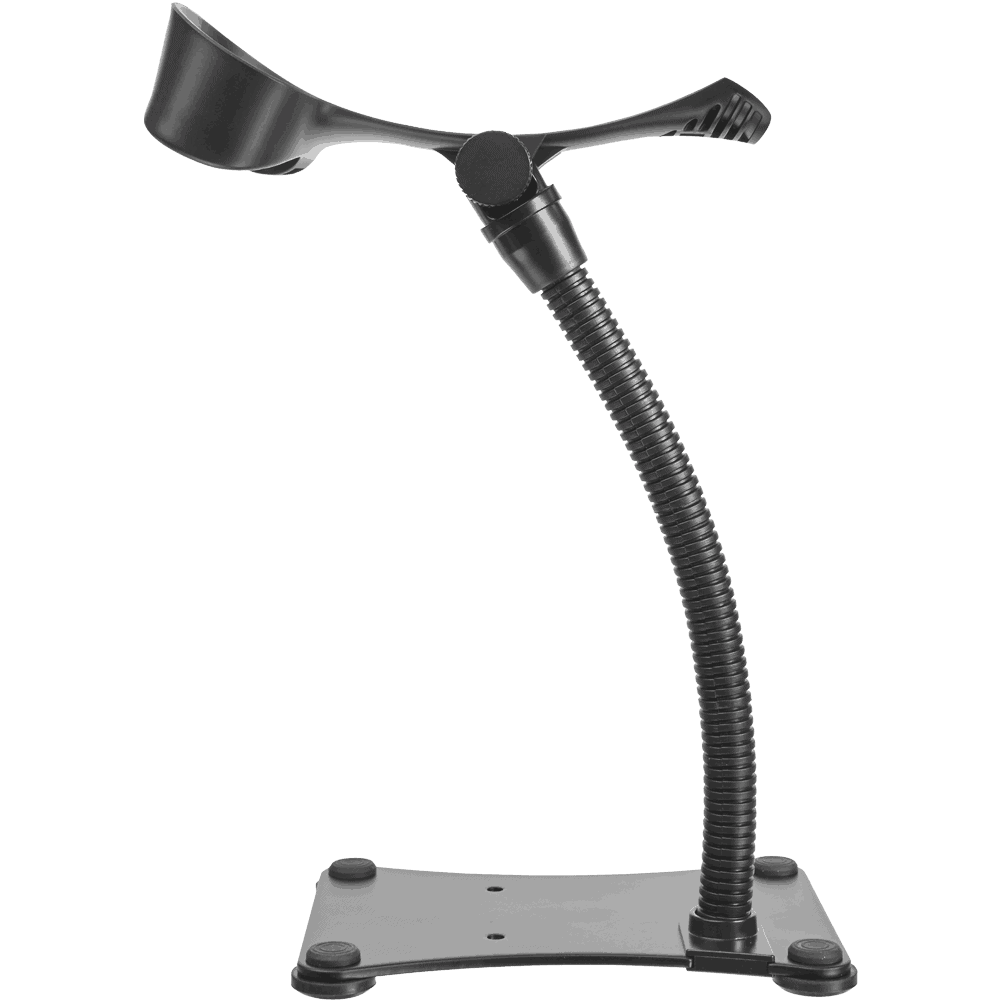

The L-50 is characterized by a sophisticated ergonomic design and a unique 'custom logo display area'. The scanner comes with an adjustable stand which makes this hand scanner very functional as a desk or counter scanner. The beauty of the L-50 Series is that it provides the ability for branding. Your brand, slogan, or print of choice can be displayed on top of the handheld scanner, expanding your brand visibility. This is the first product produced by Opticon that is self-customizable and does not rely on order quantities. The handheld scanner does not require any technical know-how to set it up and the set-up only takes a few minutes, therefore the L-50 is an intuitive and quick scanner that gets you started right away. The scanner is available in black and white.

Features
  • CCD Linear Imager
  • Reads High Resolution Barcodes
  • Reads from LCD Screens
  • Scan Rate of 300 scans/sec
  • LED Aiming line

Product Specifications

Scan EngineCCD Linear Image Sensor
Light Source624 nm Red LED
CCD Linear Image
Scan PatternSingle Line
Scan Rate300 Scans/sec
Resolutionat PCS 0.9: 0.076 mm
Minimum PCS 0.3
Depth of field40 - 600 mm (res. 1.0 mm / 39 mil),
25 - 350 mm (res. 0.5 mm / 20 mil)
15 - 220 mm (res. 0.25 mm / 10 mil)
30 - 120 mm (res. 0.15 mm / 6 mil)
35 - 90 mm (res. 0.127 mm / 5 mil)
at PCS 0.9, Code 39
Tilt Angle25°
Pitch Angle-50 to 0°, 0 to +50°
Skew Angle-65 to 0°, 0 to +65°
Ambient Light ImmunityFluorescent 10,000 lux max, Incandescent 10,000 lux max., Direct Sun 100,000 lux
Symbologies supported1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey
Postal Code: Chinese Post, Korean Postal Authority code
Indicators/Controls1 White LED
Buzzer
1 Scan Key
InterfacesRS232 - DB9 PTF connector with external power supply
Keyboard Wedge -with external Power Supply
USB - Ver. 2.0, HID/COM, USB-A connector
Supply Voltage5 V 10 % (USB), 6 V (Keyboard Wedge and RS232)
Power ConsumptionMax. 165 mA
Drop Specification1.5 m / 5 ft drop onto concrete surface
10 - 100 Hz with 2G for 1 hour
Environmental SealingIP42
Operating Environment0 to 50 °C
RH 5 - 95 % (non-condensing)
Storage Environment-20 to 60 °C
RH 5 - 95 % (non-condensing)
EMC/Safety StandardsCE, FCC, VCCI Class B, RoHS, IEC/EN 62471-1:2006, EN550022, EN55024
External Dimensions (WxDxH)75.4 x 121.2 x 169.5 mm
Weight145 g (excl. cable)
