Opticon L-46X
POSMarket SKU: Z2065

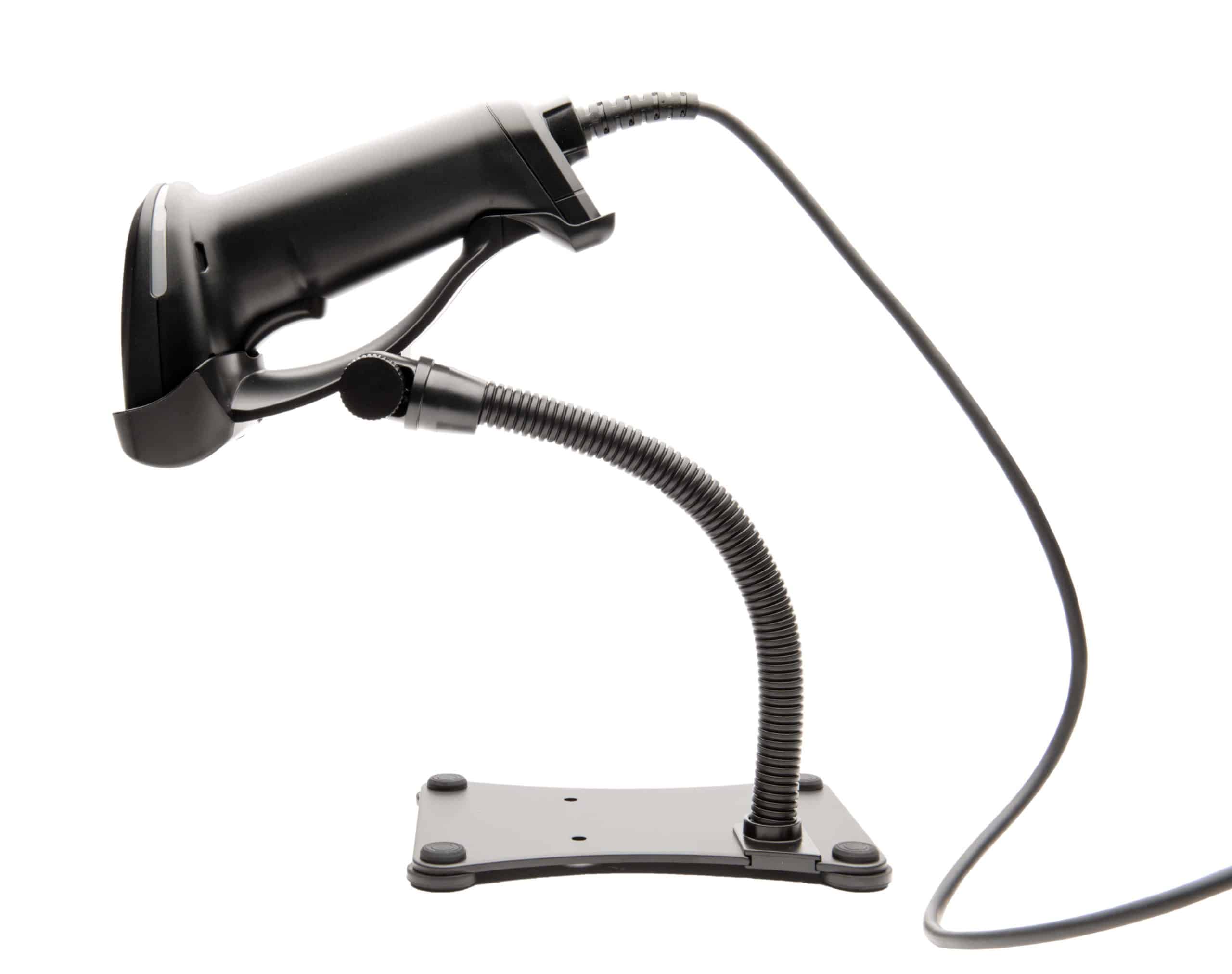

14007: L-46X 2D Scanner, USB Interface, Includes stand
Opticon L-46X USB Scanner. Featuring 2D CMOS imaging technology providing true point-and-shoot barcode scanning...
Product Overview
The L-46X is the perfect combination of performance, durability and reliability. The L-46X 2D Imager integrates Opticon’s industry leading 2D CMOS imaging technology providing true point-and-shoot barcode scanning.
Features
- 2D Handheld Imager Scanner
- Exchangeable cables
- Auto-trigger
- High speed moving object scanning
- 100 frames per second
Product Specifications
| Scan Engine | CMOS Area Sensor. 640 x 480 pixels |
| Light Source | Aiming green LED |
| Scan Pattern | 640 x 480 Pixels |
| Scan Rate | Up to 100 frames/sec |
| Resolution | at PCS 0.9: 0.1 mm / 3.9 mil Minimum PCS 0.2 |
| Depth of field | Code 39: 43 - 330 mm (res. 0.508 mm / 20 mil) 21 - 168 mm (res. 0.254 mm / 10 mil) 23 - 69 mm (res. 0.127 mm / 5 mil) Code 128 36 - 124 mm (res. 0.2 mm / 7.87 mil) UPC 21 - 207 mm (res. 0.33 mm / 13 mil) PDF417 16 - 88 mm (res. 0.169 mm / 5 mil) 12 - 142 mm (res. 0.254 mm / 10 mil) QR Code: 32 - 56 mm (res. 0.169 mm / 5 mil) 0 - 173 mm (res. 0.381 mm / 15 mil) DataMatrix: 34 - 60 mm (res. 0.169 mm / 5 mil) 14 - 108 mm (res. 0.254 mm / 10 mil) |
| Tilt Angle | 360° |
| Pitch Angle | -65 to 0°, 0 to +65° |
| Skew Angle | -65 to 0°, 0 to +65° |
| Ambient Light Immunity | Fluorescent 10,000 lux max, Incandescent 10,000 lux max., Direct Sun 100,000 lux |
| Symbologies supported | 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, Industrial 2of5, Interleaved 2of5, MSI/Plessey. Postal Code: Inteligent Mail Barcode,Korean Postal Authority code, POSTNET PLANET, Japan Postal, Netherland KIX Code, UK Postal, Australian Postal Code 2D Code: Aztec Code, Chinese Sensible Code, Codablock F, DataMatrix (ECC 200), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code. |
| Programming Method | Scan barcodes from Manual |
| Indicators/Controls | 1 x Scan Key Visual 1 White LED Buzzer, vibrator |
| Operating Modes | Manual Trigger, Auto Trigger, Stand Detection |
| Communication Type | Cabled |
| Interfaces | USB - Ver. 2.0, HID/COM, USB-A connector RS232 - DB9 PTF connector with external power supply |
| Supply Voltage | 5 V 5 % |
| Power Consumption | Typical. 330 mAh |
| Drop Specification | 1.8 m / 6 ft drop onto concrete surface 10 - 100 Hz with 2G for 1 hour |
| Environmental Sealing | IP42 |
| Operating Environment | -5 to 50 °C RH 0 - 90 % (non-condensing) |
| Storage Environment | -30 to 60 °C RH 0 - 90 % (non-condensing) |
| EMC/Safety Standards | CE, FCC, VCCI Class B, RoHS, IEC/EN 62471-1:2006, EN55032, EN55024 |
| External Dimensions (WxDxH) | Scanner 105.4 x 60 x 153.4 mm Stand 53 x 73 x 112 mm |
| Weight | Scanner 112 g (excl. cable) Stand 365 g |
