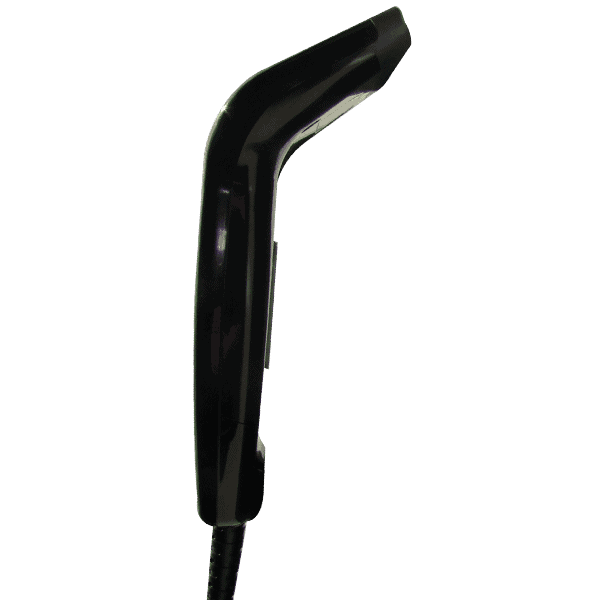

Opticon C-37

$129.32 (incl. GST)

POSMarket SKU: Z2071

12306: OPC37 Scanner, USB Interface, Black

Opticon CCD USB Linear Imager. Rugged, reliable and very affordable CCD Barcode Scanner...

Product Overview

The Opticon C-37, a rugged, reliable, very affordable CCD barcode scanner, features a scan rate of 200 scans/sec and sustains a drop from 1.5 m to concrete. Great for administrative records control, healthcare or retail applications.

The C-37 is a durable CCD scanner with a wide optical window. With its aggressive scan engine the C-37 operates at a speed of 200 scans per second. Available in black and white(ant-microbial), this sleek scanner fits on every desk. This lightweight and ergonomically shaped device fits comfortably in anyone's hand, making it suitable for all-day scanning applications. The C-37 is available with the most popular interfaces: USB, Keyboard Wedge and RS232. This device is easily programmable to suite your application. This cabled scanner comes with RS-232, keyboard wedge, or USB interface. This device is easily programmable to suit your application.

Features
  • Affordable, durable and reliable, a proven performer
  • Scanner contains no moving parts
  • Enhanced decoding algorithms for ultra-fast (200 scans/second) barcode scanning
  • Reads 1D barcodes from LCD screens
  • Durable - survives 1.5 meter drop to concrete
  • IP42 rating against dust and moisture
  • Trigger modes: manual and autotrigger
  • Compact size and weight: 53 x 75 x 150 mm (W x H x D) and 90 grams
  • Communication interface: RS232, or USB
  • Available in black or white
  • Backed by a two year warranty

Product Specifications

Scan EngineCCD linear image sensor 2500 pixels
Light SourceRed LED 630 nm
Scan PatternSingle Line
Scan Rate200 scans/sec
Motion ToleranceN/A
Image CaptureN/A
Capture AreaN/A
Contrast RatioN/A
Resolution0.125 mm / 5 mils (Linear Barcodes)
Depth of fieldCode 39:
5 mils - 0 to 1.5 cm
Tilt Angle+/- 25°
Pitch Angle+/- 30°
Skew Angle+/- 70°
Ambient Light Immunity10,000 Lux Max.
Symbologies supported1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey
Postal Code: Chinese Post, Korean Postal Authority code
Programming MethodScan codes in Manual
Driver available
Indicators/ControlsMulti Colour LED (red/green/orange)
Buzzer
Operating ModesTrigger
Communication TypeCable
Communication Technology
InterfacesUSB: ver1.1, HID/VCP, USB-A Connector
RS232: DB9 Connector with external power supply connector
KBW: Mini DIN 6 F/M Connector
Not Multi Interface
Supply VoltageUSB/KBW: 5V +/- 10%
RS232: 4.5-6.6V
Power ConsumptionN/A
Drop SpecificationDesigned to withstand repeated 1.5m drops to concrete
Vibration Test 10-100Hz with 2G for 1 Hour
Environmental SealingIP42
ESD ProtectionN/A
Operating Environment0° ~ 50°C, Relative Humidity 5 - 95% none condensing
Storage Environment-20° ~ 60°C, Relative Humidity 5 - 95% none condensing
EMC/Safety StandardsCE, FCC, VCCI, RoHS
External Dimensions (WxDxH)Scanner: 53 x 150 x 75mm
WeightScanner 90 g
