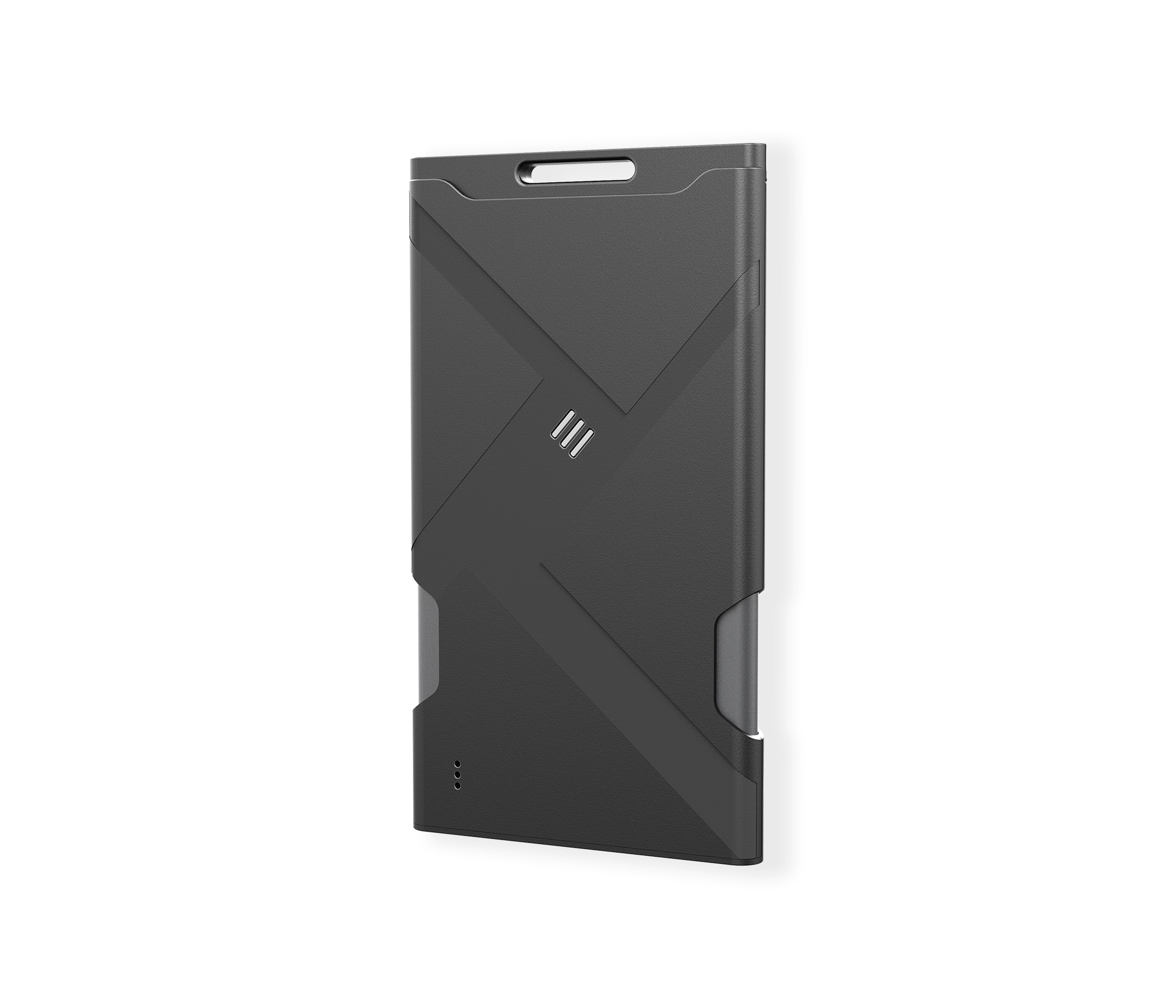

Newland BS30
POSMarket SKU: Z20465
NLS369-10260: WIRELESS BADGE SCANNER/2D IMAGER/LASER AIMING/BT5.0/USB TYPE-C CABLE/LANYARD/TELESCOPIC BUCKLE/CASE
The BS30 is remarkably compact, lightweight, and designed for comfortable use, whether worn around the neck or held by hand, making it easy to minimize fatigue.
Product Overview
The BS30 is extremely small and lightweight and easy to relieve the fatigue when using it on the neck or holding it by hand.
Cost-effective Application
The BS30 is not only a barcode scanner but also can be used as a badge.
High Protection Industrial Structure Design
The BS30, built into an IP65-sealed and drop resistant (1.2m) housing with no moving parts fortifies itself inside and out, is suitable for the tough outdoor environments.
Outstanding Performance
Equipped with Newland latest technology, the scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.
Reliable and Stable Wireless Communication
Adopting the latest Bluetooth which is strong anti-interference and stable to transmit the data.
Product Specifications
| Image Sensor | 1280×800 (megapixel) CMOS |
| Illumination | White LED |
| Aiming | Laser (650nm) |
| Symbologies |
1D: Code 11, Code 128, Code39, GS1-128, AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISBN, ISSN, InterLeaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, COOP 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS) 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode, GM Code. |
| Resolution | =3mil |
| Typical Depth of Field |
EAN-13: 65mm-550mm (13mil) Code 39: 120mm-330mm (5mil) PDF 417: 120mm-240mm (6.7mil) Data Matrix: 125mm-240mm (10mil) QR Code: 40mm-370mm (15mil) |
| Scan Angle | Pitch: ±55° Skew: ±55° Tilt: 360° |
| Field of View | Horizontal 40°, Vertical 25° |
| Min. Symbol Contrast | =25 |
| Wireless |
Communication Modes: Bluetooth BLE, Bluetooth HID Modes Radio Technology: Bluetooth 5.0 Communication Distance: 30m/98ft (in open space) |
| Battery | 300 mAh lithium-ion battery |
| Expected Charge Time | <2 hours (with power adapter) |
| Expected Battery Life | =2.2 hours of continuous operation (scan once per 1 second) |
| Physical | |
| Dimensions (L×W×H) | 110.8×62.3×10.6mm |
| Weight | 53g |
| Interfaces | USB |
| Notification | Beep, LED indicator, Vibration |
| Operating Voltage | 5VDC±5% |
| Environmental | |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Battery Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity | 5% ~ 95% (non-condensing) |
| ESD | ±10 KV (air discharge); ±6 KV (contact discharge) |
| Drop | 1.2m/3.94ft |
| Sealing | IP65 |
| Certifications | Certificates: CE RED, FCC ID, RoHS, SRRC, IEC 62471 |
