KOAMTAC KDC400 Series
POSMarket SKU: Z1896

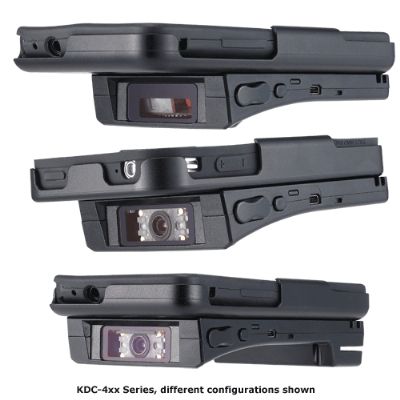

This model is available in 9 different configurations. Select a configuration below or contact our experts on 1300 737 998.
1D and 2D Bluetooth Barcode Scanner and SmartSled. Available with Laser Scanner or 2D Imager...
Product Overview
Available with Laser Scanner or 2D Imager.
With its innovative technology and user-friendly design, the KOAMTAC KDC400 allows users to upgrade the smartphone periodically while maintaining the KDC400. Although the KDC400 has been discontinued, users may experience these benefits plus IP-65 Rating with the KDC470 and KDC475.
Features
- 1D Laser or 2D Adaptus 5 Imaging Engine
- Decodes all major 1D, 2D symbologies and OCR-A/B depending on Scan engine
- Class2 Bluetooth Communications
- User replaceable custom housing for Smartphones and Tablets
- Rechargeable Li-Ion battery with user-accessible compartment for easy replacement
- Optional RFID
- Powerful keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
Product Specifications
| Physical Characteristics | |
| Barcode Model | Size: 2.50&'' x 3.70&'' x 0.80'' (65 mm x 95 mm x 20 mm) Weight: 2.8 oz (80 g) |
| Barcode/MSR Model | Size: 2.50'' x 4.70'' x 0.80'' (65 mm x 121 mm x 20 mm) Weight: 4.06 oz (115 g) |
| Electrical Characteristics | |
| Battery: | Lithium-Ion (3.7V DC, 1200mAh) |
| Charging: | USB connector |
| Interfaces | Bluetooth 2.1+EDR, Class 2, HID/SPP/MFi USB to Serial (Ultra mini USB port) USB HID/Flash Memory |
| User Environment | |
| Drop Spec: | 5 feet (1.5m) |
| Operating: | 32 F to 113 F ( 0 C to 45 C) |
| Storage: | -4 F to 113 F (-20 C to 45 C) |
| Humidity: | 5% to 85% (non-condensing) |
| Regulatory Conformance | |
| Laser Safety: | IEC60825/CDRH Class II |
| LED Safety: | IEC62471:2006 |
| Electrical Safety: | UL 60950-1; EN/IEC 60950-1; EN/IEC 60825-1 |
| EMI/RFI: | R&TTE, FCC, KC, TELEC |
| Environmental: | RoHS Compliant |
| Scan Range (10mil Code39) | |
| Laser: | 1.97'' to 7.4'' (50 mm to 190 mm) |
| Imager: | 3.2'' to 9.2'' (15 mm to 438 mm) |
| Symbologies | |
| Laser (1D): | EAN-13, EAN-8, UPC-A, UPC-E, Code 39, ITF14, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 93, Code 35, Bookland EAN-13, EAN-13/8 incl. add on, UPC-A/E incl. add on, GS1 Omni, GS1 Limited, GS1 Expanded |
| Imager (1D): | Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1 |
| Imager (2D): | Aztec Code, Aztec Runes, Codablock F, Code 16K, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code |
| Postal Codes: | POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post |
| OCR Options: | OCR-A, OCR-B, OCR US Currency, OCR MICR E13B, OCR Semi Font |
Product Videos
