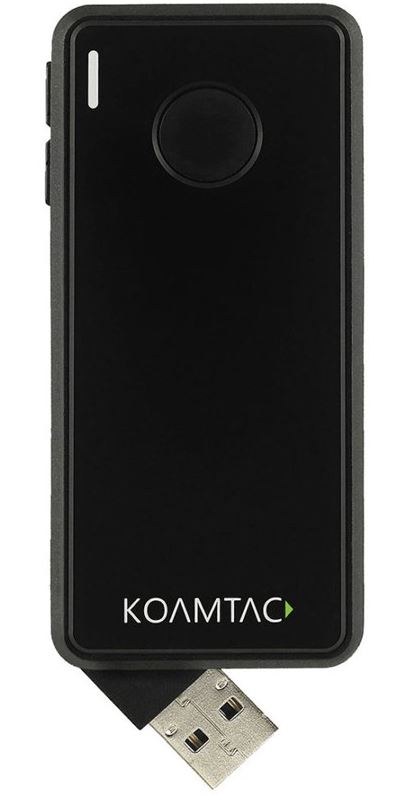

KOAMTAC KDC30
POSMarket SKU: Z2099
150142: KDC-30 Batch Data Collector with 2D Scanner, for iOS
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
2D Imager Bluetooth Barcode Scanner...
Product Overview
Features
- 2D Imager Bluetooth Barcode Scanner
- Supports all major 1D, 2D symbologies and OCR
- Superior scanning performance with the top of the line imager scan engine
- Ultra Compact & Lightweight
- Bluetooth V2.1+EDR, Class 2, HID/SPP/MFi
- Built in swing-out USB connector
- Rechargeable Li-ion battery with user-accessible compartment for easy replacement
- Powerful keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
- Optional vibrating and backup battery for the real time clock
- KOAMTAC provides complimentary KTSync synchronization and wedging software for Android, Blackberry, iOS, Mac OS X and Windows devices.
Product Specifications
| Processor | ARM11 32-bit |
| Development Environment | SDK for PC, Pad and Smartphone application Application generation tool Database lookup feature Inventory management feature KTSync with Keyboard Wedging feature |
| Operating Platform | Proprietory |
| Real-Time Clock | Quartz RTC for timestamp |
| Memory | Standard Flash ROM: 256KB RAM: 64 KB |
| Memory Expansion | N/A |
| Scan Engine | Image Sensor : 1280 x 960 CMOS sensor Scan Range: 4 ~ 27cm |
| Bar-code Type | Barcode (1D): EAN8, EAN13, Codabar, Code 11, Code 39, Code 32, Code 128, GS1-128, Interleaved 2 of 5, MSi, Plessey, Posicode, GS1 DataBar 14, GS1 DataBar 14 Stacked, GS1 DataBar limited, GS1 DataBar expanded, GS1 DataBar expanded stacked, S2of5IA, S2of5ID, Telepen, Trioptic, UPCA, UPCE, Pharmacode Barcode (2D): AztecCode, Codablock, DataMatrix, MaxiCode, MicroPDF, PDF417, QRCode, Micro QR Code HanXin Code Postal Codes: AusPost, JapanPost, KoreaPost, KixPost, Planet Code, Postnet (US), Intelligent Mail OCR Fonts: OCR ISBN, OCR Price, OCR Passport, OCR MICR13 |
| Keyboards | 3 keys total, 2 navigation keys, 1 scan key |
| Audio | Buzzer |
| Display | N/A |
| Camera | N/A |
| I/O Ports | Swing out USB Type A Connector |
| Radio Options | Bluetooth V2.1+EDR, Class 2, HID/SPP/Optional MFi |
| Battery | Rechargeable battery: Lithium-Ion Polymer 3.7V 650mAh |
| Battery Life | N/A |
| Environmental Sealing | N/A |
| Mechanical Shock | Withstands drops from 1.2 m onto concrete with Rubber case |
| ESD Protection | N/A |
| External Dimensions (WxDxH) | 38 x 83.5 x 18 mm |
| Weight | 50.5g with Battery |
| Operating Environment | 0 ~ 45°C RH 5-85% non condensing |
| Storage Environment | -20 ~ 45°C RH 5-85% non condensing |
| Product Compliance | C-Tick, CE, FCC, VCCI, TELEC |
