KOAMTAC KDC-470
POSMarket SKU: Z14236
This model is available in 9 different configurations. Select a configuration below or contact our experts on 1300 737 998.
The KDC470 enables diverse mobile Auto-Identification applications to collect data via barcode, RFID, OCR, and payment applications via USB/Serial and Bluetooth connections to various smartphones and tablets. This IP65-rated scanner is built to withstand dust and water in even the most rugged environments
Product Overview
- 1D Laser or CCD or 2D Imager models
- Decodes all major 1D, 2D symbologies and OCR-A/B depending on Scan engine
- Class2 Bluetooth Communications
- User replaceable custom housing for Smartphones and Tablets
- Rechargeable Li-Ion battery with user-accessible compartment for easy replacement
Product Specifications
| Processor | NA |
| Development Environment | SDK for PC and Smartphone application |
| Operating Platform | Proprietory |
| Real-Time Clock | NA |
| Sensors | NA |
| Memory | Flash ROM: 256KB Program, 8MB user Data
RAM: 64 KB |
| Memory Expansion | N/A |
| Scan Engine | Laser scan Engine, Scan range: 50-420mm
or CCD Linear Scan Engine, Scan range: 60-460mm or 2D Imager, Scan range: 60-466mm |
| Bar-code Type | Laser 1D: EAN/UPC, Code 39, Code 93, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 3 of 5 CCD 1D: UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 Databar (RSS) excl stacked, IATA, Industrial 2 of 5, Interleaved 2 of 5, IBSN-ISNN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-optic, UK/Plessey Imager 2D: Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 Databar (RSS), IATA, Industrial 2 of 5, Interleaved 2 of 5, IBSN-ISNN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-optic, UK/Plessey Barcode 2D: Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite Codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority Code, POSTNET |
| Keyboards | scan Button |
| Audio | Buzzer |
| Display | N/A |
| Camera | N/A |

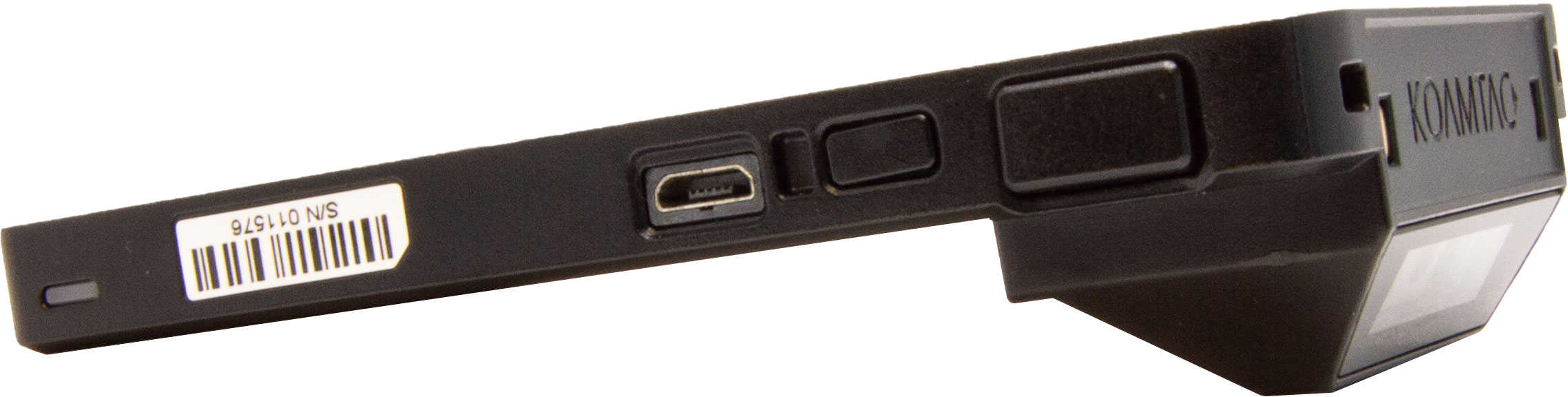

| I/O Ports | Build in Micro USB port |
| Radio Options | Bluetooth® V2.1+EDR, Class 2, HID/SPP/MFi |
| Battery | Rechargeable battery: Lithium-Ion Polymer 3.7V 1130mAh |
| Battery Life | N/A |
| Environmental Sealing | IP65 |
| Mechanical Shock | Withstands drops from 1.5 m onto concrete |
| ESD Protection | N/A |
