Honeywell IT-3800i
POSMarket SKU: Z2363
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

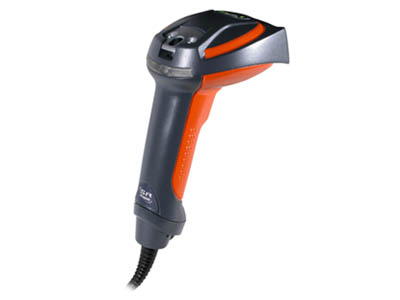

Honeywell's IT-3800i Industrial Linear Imager delivers all the performance you've come to expect from Honeywell with the added benefit of an industrialized housing that's built to withstand real-world conditions. With no internal moving parts, the 3800i can handle extreme temperature variations, dirt, dust, and moisture that can stress the average bar code reader - ideal for warehouse, manufacturing, distribution, and forklift applications.
Product Overview
- High Performance Industrial Hand Held Scanner
- Powered by Adaptus Imaging technology
- Solid State Heavy Duty Construction, No moving parts!
- Operational after 50 drops from 2 m onto Concrete
- IP54 Rating
- 3 Factory Year Warranty
- Very Fast Decode Rate
- Linear Imaging Technology
- Bright Sharp Aiming Line
- Also available with laser aimer
- Increased Reading Distance
- Used Indoors and Outdoors in Bright Sunlight
- Optical and Audible Read Confirmation
- Exceptional Read Performance
- Manual, Presentation Mode or Auto Trigger
- Reads Degraded and damaged bar-codes
- Powerful, Flexible Architecture
- Fully Programmable

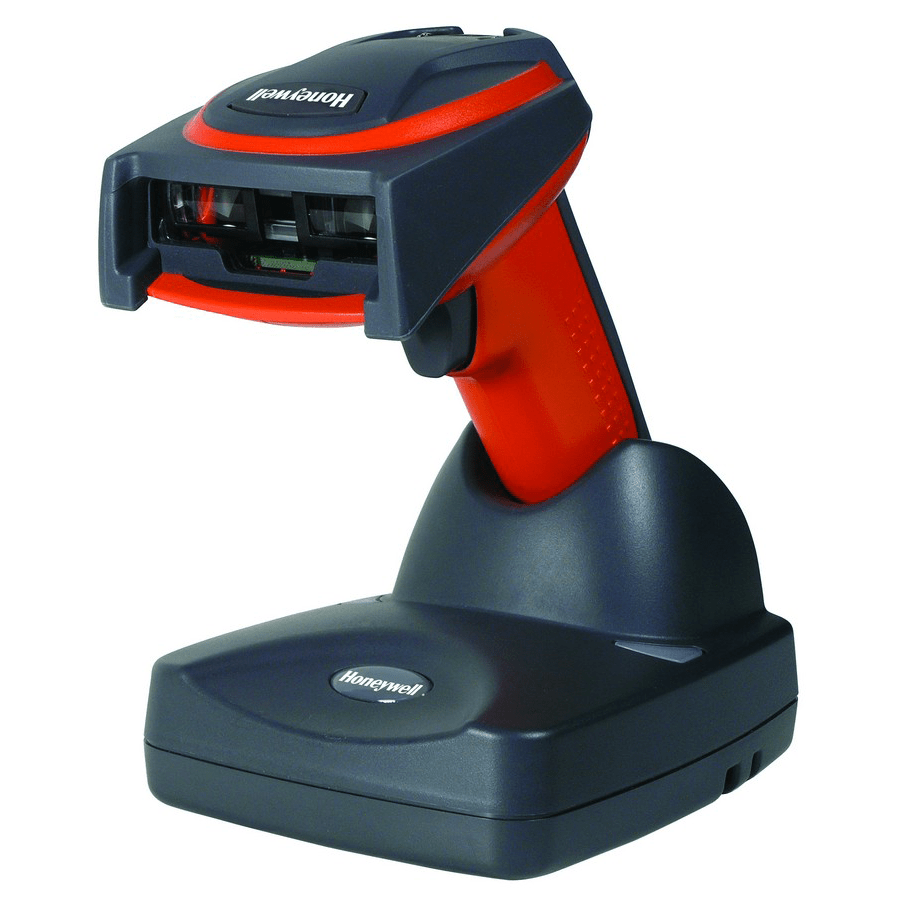

- Hands Free Stand or Counter Holder available
Product Specifications
| GENERAL | ||
| Type | Barcode scanner - handheld | |
| Packaged Quantity | 1 | |
| Manufacturer | Honeywell, Inc. | |
| INPUT DEVICE | ||
| Connectivity Technology | wired | |
| TTL Decoding | decoded | |
| PRINTER | ||
| Barcodes | GS1 DataBar | |
| BARCODE | ||
| Interface Type | keyboard wedge | |
| Scan Field Width | 1.5 in - 82.01 in | |
| Interface | keyboard wedge | |
| Light Source Wave Length | 630 nm | |
| Barcodes | GS1 DataBar | |
| Print Contrast Signal (PCS) | 20% | |
| Skew (Degrees) | 65 | |
| Pitch (Degrees) | 65 | |
| Minimum Bar Width | 7.5 mil | |
| Min Scan Field | 1.5 in | |
| Max Scan Field | 82.01 in | |
| Features | ESD (electrostatic discharge) safe, dustproof, rugged | |
| Decode Capability | GS1 DataBar | |
| Scan Speed | 270 scan / sec | |
| Connectivity Technology | Wired | |
| Scan Element Type | Visible laser diode | |
| TTL Decoding | Decoded | |
| MISCELLANEOUS | ||
| Color | orange | |
| Color Category | orange | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 0 - 95% (non-condensing) | |
| Min Operating Temperature | -22 Degree F | |
| Max Operating Temperature | 122 Degree F | |
| MANUFACTURER WARRANTY | ||
| Type | 3 years warranty | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | handheld | |
| Scan Element Type | visible laser diode | |
| Scan Speed | 270 scan/sec | |
| HEADER | ||
| Brand | Honeywell | |
| Product Line | Honeywell | |
| Model | 3800i Industrial-Grade Linear-Imaging Scanner | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| DIMENSIONS & WEIGHT | ||
| Width | 3.2 in | |
| Depth | 5.3 in | |
| Height | 6.4 in | |
| Weight | 7.51 oz | |
| INTERFACE REQUIRED | ||
| Type | keyboard wedge | |
| Total Qty | 1 | |
| CABLE DETAILS | ||
| Type | keyboard wedge cable | |
| Form Factor | external | |
| Included Qty | 1 | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 7.51 oz | |
| SERVICE & SUPPORT | ||
| Type | 3 years warranty | |
| SHOCK & VIBRATION TOLERANCE | ||
| Drop Specification | 6.5 ft to concrete | |
| SERVICE & SUPPORT DETAILS | ||
| Type | limited warranty | |
| Full Contract Period | 3 years | |
| GENERAL | ||
| Manufacturer | Honeywell, Inc. | |
