Honeywell Granit 1980i
POSMarket SKU: Z4817
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

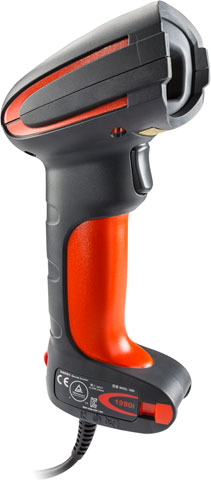

The Granit 1980i wired Area Imaging scanner is capable of reading 1D & 2D barcodes from 15cm to 15m away, making it the perfect industrial scanner for use in harsh warehouse environments. With a durable IP65 rating, withstanding 5000 drops to concrete from 1m, and compatibility with Honeywell's Vehicle Mounted Computers, this is the perfect scanner for operators on forklifts.
Product Overview
With an unmatched range and the option of wireless freedom (1981i model), Granit scanners maximize operator productivity in the harshest environments.
Granit 1980i scanners are packed with technologies that make them simple to use - technologies like an integrated laser pointer aiming system with auto-illumination, omni-directional reading capability, and support for centering to take the guesswork out of scanning at extended ranges.
Operators of fork trucks equipped with vehicle-mounted mobile computers, such as the Honeywell Thor series, will appreciate how the full-range scanning capability allows them to remain seated - and hence more productive - while scanning barcodes at extended ranges.
Like the entire Granit series, the 1980i scanners deliver best-in-class durability with an IP65-rated housing. In harsh distribution center and warehouse environments, these scanners maximize your team's productivity and lower the overall cost of ownership.
Features
- Full-Range Area-Imaging Powerhouse Reads both 1D and 2D codes from near-contact to more than 15m away.
- Super Durable IP65 Rating Withstands 5,000 drops to concrete from 1m and 50 drops from 2m - even at temperatures as low as -30C.
- Intuitive User Feedback Bright visible aimer, configurable beeper, and good-read indicators provide clear, immediate feedback.
- Simple to Support For wired models, a single screw releases the cable for replacement. For wireless models, a quick twist and turn makes swapping batteries easy.
- Compatible With Honewell's Vehicle-Mounted Computers The Granit series seamlessly integrates with Honeywell vehicle-mounted computers - just plug in and start scanning.
Product Specifications
| Mechanical | |
| Dimensions (L x W x H) | 133 mm x 75 mm x 195 mm |
| Weight | 335g |
| Scan Performance | |
| Scan Pattern | Area Imager |
| Scan Angle | Horizontal - 12.9 Degrees Vertical - 8 Degrees |
| Symbol Contrast | 1D Codes - 30% minimum reflectance difference 2D Codes - 40% minimum reflectance difference |
| Min. Resolution | 1D & 2D Codes: 2 mil |
| Pitch | 70 Degrees |
| Skew | 80 Degrees |
| Warranty | 3 year factory warranty |
| Electrical | |
| Input Voltage | 4.0 to 5.5 VDC |
| Operating Power | 2.35 W (470 mA @ 5.0 V) |
| Standby Power | 0.5 W (100 mA @ 5.0 V) |
| Host System Interfaces | USB and True RS232 |
| Environment | |
| Operating Temperature | -30C to 50C |
| Storage Temperature | -40C to 70C |
| Humidity | 0 to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 50 2m drops to concrete at -30C |
| Tumble | 5,000 1m tumbles |
| Environmental Sealing | IP65 |
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) |
| ESD | +/- 20Kv air discharge +/- 8kV contact discharge |
