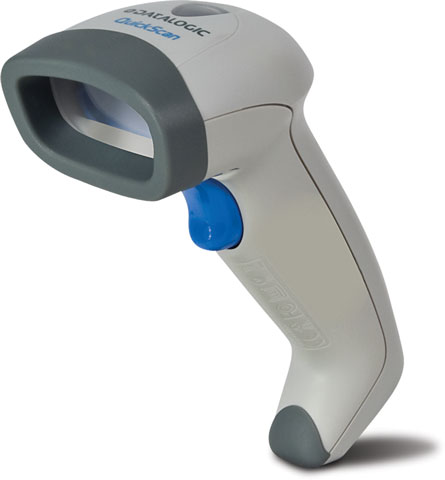

Datalogic QD2100
POSMarket SKU: Z2269

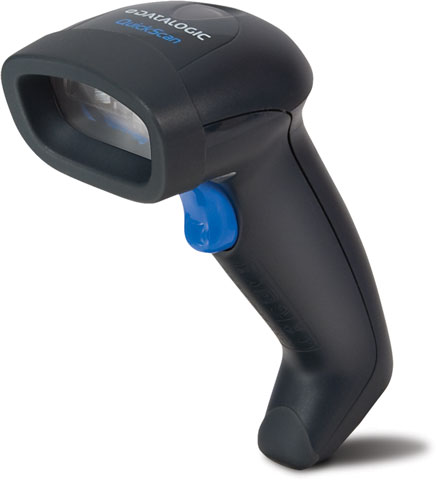

DLQD2110B: Black, IBM, OWN USB, RS232 I/F. Scanner only
General Purpose Linear Imaging Reader. QuickScan 2100 Family coded version
Product Overview

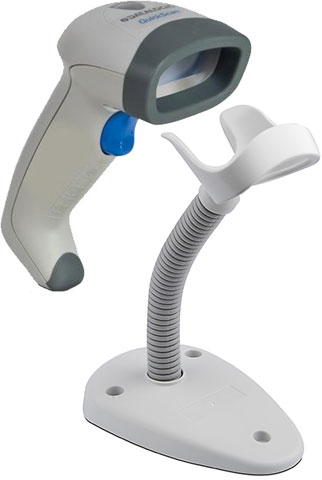

The QD2100 is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance especially on hard to read barcodes and is capable of reading a wide range of symbologies including the majority of 1D codes plus GS1 DataBar linear codes. The QD2100 reader features Datalogics exclusive patented Green Spot for good read feedback directly on the code. When in Stand Mode, the Green Spot remains on to show the operator where to position the code for quick and intuitive reading.
Features
- Handheld Linear Imager Scanner
- Datalogic ''Green Spot'' for good read feedback
- User replaceable scan window
- Two multi-interface options support the most popular interface combinations
- Supports GS1 DataBar codes
- Remote host download functions (Model QD2110)
- Water and Particulate Sealing Rating: IP42
- Drop resistance to 1.5 m
Product Specifications
| Scan Engine | Linear Imager |
| Light Source | Red LED 610 - 650 nm |
| Scan Pattern | Single Line |
| Scan Rate | 270 reads/sec |
| Motion Tolerance | N/A |
| Contrast Ratio | Minimum 15% |
| Resolution | 0.102 mm / 4 mils (Linear Barcodes) |
| Depth of field | 4 mils - 2.0 to 11.0 cm 5 mils - 1.5 to 15.0 cm 7.5 mils - 0.8 to 25.0 cm 10 mils - 0.8 to 38.0 cm 13 mils - 1.9 to 45.0 cm 20 mils - 2.5 to 65.0 cm Performance may be impacted by Bar code quality and environmental conditions |
| Tilt Angle | +/- 45° |
| Pitch Angle | +/- 65° |
| Skew Angle | +/- 65° |
| Ambient Light Immunity | 0 to100,000 Lux |
| Symbologies supported | 1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectiona; UPC A/E Composites |
| Programming Method | Automatic: Software commands through the RS-232 / USB interfaces Datalogic Aladdin: Windows configuration program |
| Driver available | JavaPOS, OPOS Utilities |
| Indicators/Controls | Beeper (Adjustable Tone and Volume) Datalogic's "Green Spot" Good read feedback Good read LED |
| Operating Modes | Trigger |
| Communication Type | Cabled |
| Interfaces | QD2130: USB, Keyboard Wedge, Wand & RS232 Multi Interface QD2110: RS-232 / IBM 46XX / USB Multi-Interface |
| Supply Voltage | QD2130: 5 VDC QD2110: 4-14 VDC |
| Power Consumption | Operating (Typical): 340 mA @ 5 VDC Standby/Idle (Typical): 190 mA @ 5 VDC |
| Drop Specification | Designed to withstand repeated 1.5m drops to concrete |
| Environmental Sealing | IP42 |
| ESD Protection | +/- 20 kV air discharge |
| Operating Environment | 0° ~ 50°C, Relative Humidity 5 - 95% none condensing |
| Storage Environment | -40° ~ 70°C, Relative Humidity 5 - 95% none condensing |
| EMC/Safety Standards | The product meets necessary safety and regulatory approvals for its intended use. Complete list in Quick Reference guide Complies to EU RoHS & China RoHS LED Classification: IEC 60825-1 Class 1 LED Product |
| External Dimensions (WxDxH) | Scanner: 66 x 71 x 170 mm |
| Weight | Scanner 121.9 g |
