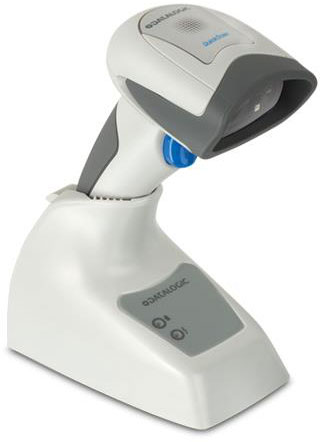

Datalogic QBT2131
POSMarket SKU: Z5068
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
The QuickScan QBT-2131 Bluetooth Scanner is designed for reading extra wide 1D Barcodes, commonly found on utility bills, documents and packaging. Its wide field of view and extra-long scan line makes reading long barcodes in closer distances much easier. Featuring Bluetooth technology, the scanner can transmit data to the host through it's base station, or can be connected directly to any Bluetooth compliant device, like Android or iOS tablets.
Product Overview
Today there is an increased trend towards 2D bar codes, however, linear bar codes are still dominant in the automatic data capture industry. Long bar codes are commonly used in a variety of applications including utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.
ENHANCED PERFORMANCE
The QuickScan QBT2131 imager's extrawide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables barcodes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
CORDLESS FEATURES
Featuring Bluetooth Wireless Technology, the QuickScan QBT2131 imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth compliant device. The QBT2131 linear imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.
An innovative, long lasting and user replaceable Li-Ion battery package allows the simultaneous replacement of battery and scanner contacts for a refresh of the most significant parts related to a mobile product's functionality.
A microUSB port on the scanner foot allows an auxiliary method for battery recharging and host download configuration, and also allows the product to be used without the cradle
Product Specifications
| BLUETOOTH WIRELESS TECHNOLOGY | Piconet Max. Readers per Radio Receiver Using Commercial Dongle: 7 Using Cradle: 1 |
| PROFILES | HID (Human Interface Device) SPP (Serial Port Profile) |
| PROTOCOL | Bluetooth 3.0 Certified Class 2 |
| RADIO FREQUENCY | 2.4 GHz |
| RADIO RANGE (OPEN AIR) | 25.0 m Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results |
| SECURITY | Data Encryption Scanner Authentication |
| 1D / LINEAR CODES | Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| STACKED CODES | EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional UPC A/E Composites |
| AMBIENT LIGHT | 0 - 120,000 lux |
| DROP RESISTANCE | Withstands repeated drops from 1.5m onto a concrete surface |
| ESD PROTECTION (AIR DISCHARGE) | 16 kV |
| HUMIDITY (NON-CONDENSING) | 90% |
| PARTICULATE AND WATER SEALING | IP42 |
| COLORS AVAILABLE | Black, White |
| DIMENSIONS | 16.3cm x 9.1cm x 4.1cm |
| WEIGHT | Reader: 190g Base/Charger: 221g |
| FIELD OF VIEW | 56 Degrees +/- 2 Degrees |
| LIGHT SOURCE | Red LED 610 - 650 nm |
| PRINT CONTRAST RATIO (MINIMUM) | 25% |
| READ RATE | 400 reads / sec. |
| READING INDICATORS | Beeper (Adjustable Tone and Volume) Datalogic "Green Spot" Good Read Feedback Good Read LED |
| RESOLUTION (MAXIMUM) | 0.102 mm / 4 mils (Linear Codes) |
| WARRANTY | 3-Year Factory Warranty |
