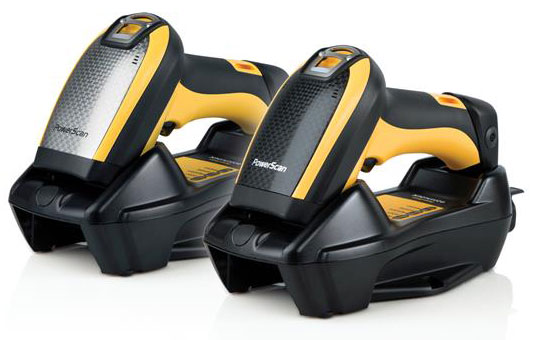

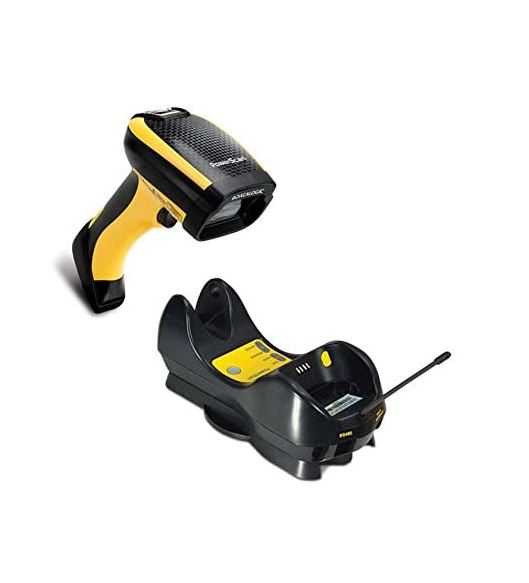

Datalogic PowerScan PM9500-DPM
$CALL
POSMarket SKU: Z5063
PM9500-DPM433RB: PM9500-DPM Scanner Only. DPM (Direct Part Marking), 433Mhz, Removable battery
1D/2D Imager Barcode Scanner. Direct Part Marking (DPM) Capable
Product Overview
Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.
The PowerScan PM9500-DPM imager is equipped with Datalogic's STAR Cordless System 2.0, which is available in 433 MHz or 910 MHz. Additionally, it features "backwards compatibility" making it compatible with the current PowerScan STAR radio technology. The PowerScan PM9500-DPM reader is a cordless rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.
The PowerScan PM9500-DPM imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance is from contact to 4-5 cm 1.5-1.9 in depending on the DPM technology used the code resolution and the material and surface type. The scanner is also capable of reading standard barcodes printed on labels. It is based on a high density optic which allows the capture of very small high-resolution codes in a range from near contact up to 15.0 cm 5.9 in.
The intuitive aiming system allows the highest first-pass reading rate. Additionally, the PowerScan PM9500-DPM area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users' eyes.
Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.
Features
The PowerScan PM9500-DPM imager is equipped with Datalogic's STAR Cordless System 2.0, which is available in 433 MHz or 910 MHz. Additionally, it features "backwards compatibility" making it compatible with the current PowerScan STAR radio technology. The PowerScan PM9500-DPM reader is a cordless rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.
The PowerScan PM9500-DPM imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance is from contact to 4-5 cm 1.5-1.9 in depending on the DPM technology used the code resolution and the material and surface type. The scanner is also capable of reading standard barcodes printed on labels. It is based on a high density optic which allows the capture of very small high-resolution codes in a range from near contact up to 15.0 cm 5.9 in.
The intuitive aiming system allows the highest first-pass reading rate. Additionally, the PowerScan PM9500-DPM area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users' eyes.
Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.
Features
- Supports any kind of DPM code
- Snappy omnidirectional reading
- Intuitive aiming system
- Soft white light illumination
- STAR Cordless System available in 433 MHz or 910 MHz
- Datalogic's Motionix motion-sensing technology
- Image capture
- Datalogic's 3GL (3 Green Lights) technology and loud beeper for good-read feedback
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Product Specifications
| Connectivity | Cordless |
| Durability | Rugged |
| Feature | High-Density Scanning |
| Interfaces | Keyboard Wedge; RS-232; RS-485; USB: OEM USB; USB COM; USB HID Keyboard |
| Decoding Capability | 1D, 2D, Postal Codes, Stack Codes |
| Direct Part Marking (DPM) Capability | Codes are readable when marked by laser or chemical etching or ink jet printed; Data Matrix codes are also readable when marked by dot peening |
| Image Sensor | 864 x 544 |
| Ambient Light | 0 - 100,000 lux |
| Drop Resistance | Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface PM9500-DPM: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface |
| Particulate and Water Sealing | IP65 |
| Temperature | Operating: -20 to 50 °C / -4 to 122 °F Battery Charging: 0 to 45 °C / -32 to 113 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Form Factor | Handheld |
| Dimensions | Cradle: 24.0 x 10.8 x 9.5 cm / 9.4 x 4.3 x 3.8 in PM9500-DPM: 21.2 x 11.0 x 7.4 cm / 8.3 x 4.3 x 2.9 in |
| Weight | PM9500-DPM: 380.0 g/13.4 oz |
| LIght Source | Aiming: 630 - 680 nm VLD Illumination: White LEDs |
| Reading Angle | Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/- 40° |
| Reading IndicatorsType | Beeper (Adjustable Tone and Volume); Datalogic's 3G (Three Green Lights) technology and loud beeper for good-read feedback: Datalogic 'Green Spot' on the Code, Dual Good Read LEDs |
| Typical Depth of field | 2 mils 2.8 to 6.3 cm / 1.1 to 2.4 in 2.5 mils 2.5 to 7.8 cm / 0.9 to 3.0 in 5 mils 1.2 to 9.0 cm / 0.4 to 3.5 in 4 mils Data Matrix 2.6 to 5.2 cm / 1.0 to 2.0 in 5 mils Data Matrix 2.2 to 7.2 cm / 0.8 to 2.8 in 10 mils Data Matrix 2.0 to 10.5 cm / 0.8 to 4.1 in 5 mils PDF 1.2 to 9.0 cm / 0.4 to 3.5 in 10 mils PDF 1.0 to 12.5 cm / 0.4 to 4.9 in 13 mils EAN-13 2.5 to 16.0 cm / 0.9 to 6.3 in |
