Datalogic Powerscan PM9100
from $1,005.68 (incl. GST)
POSMarket SKU: Z5083
This model is available in 4 different configurations. Select a configuration below or contact our experts on 1300 737 998.
1D Cordless Linear Imager Barcode Scanner
Product Overview
The Datalogic PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogic's STAR Cordless System narrow band radio.
This linear imager introduces Datalogic's new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager. The PM9100 imager also features Datalogic's exclusive 3 Green Lights (3GL) for superior good read feedback. The patented Green Spot technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.

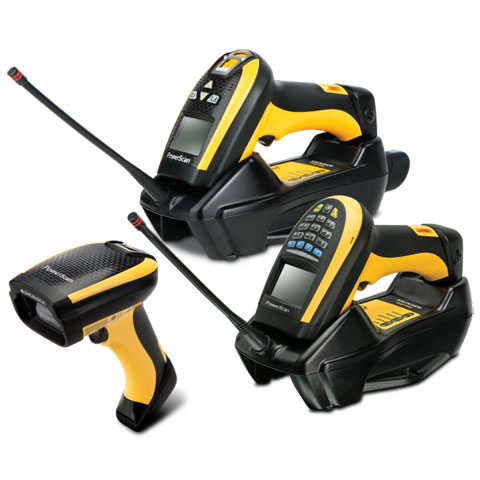

The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad. All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogics STAR Cordless System narrow band radio. This linear imager introduces Datalogic's new and innovative scanning technology implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager. The PM9100 reader has been tested to withstand extreme environmental conditions and is suitable for the toughest industrial applications.
Features
This linear imager introduces Datalogic's new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager. The PM9100 imager also features Datalogic's exclusive 3 Green Lights (3GL) for superior good read feedback. The patented Green Spot technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad. All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogics STAR Cordless System narrow band radio. This linear imager introduces Datalogic's new and innovative scanning technology implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager. The PM9100 reader has been tested to withstand extreme environmental conditions and is suitable for the toughest industrial applications.
Features
- Datalogic's new linear imaging technology
- Compatible with Datalogic's STAR Cordless System
- Datalogic 3GL and loud beeper for good-read feedback
- Available in 3 models: Basic, with Display and 4 key Keypad, with Display and Full Alphanumeric Keypad
- Radio frequencies available in 433 or 910 MHz
- Point-to-point and multi-point transmission
- Seamless roaming
- Ethernet Connectivity (Standard and Industrial)
- User replaceable Lithium-Ion battery
- Operates over a wide range of temperatures
- Water and Particulate Sealing Rating: IP65
- Drop resistance to 2.0 m / 6.6 ft
- Decoding capability up to 2.5 mils
- EASE OF CARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Product Specifications
| Form Factor | Handheld |
| Connectivity | Cordless |
| Datalogic STAR Cordless System | Point-to-Point Configuration Multi-Point Configuration: Max. Readers per Radio receiver: 16 |
| Radio Frequency | 433 MHz; 910 MHz |
| Scan Pattern | Linear |
| Scanner Type | 1D Linear Imager |
| Decoding Capability | GS1 DataBar linear codes, UPC/EAN, UPC/ EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F |
| Battery | Li-Ion 2150 mAh; |
| Reads per Change | 50,000+ (continuous reading) |
| Cradle Indicator LED's | Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow) |
| Ambient Light | Immune to light exposure in offices/facilities and direct exposure to sunlight |
| Durability | Rugged |
| Drop Resistance | Withstands 50 drops from 2.0 m / 6.6 ft to concrete |
| Particulate and Water Sealing | IP65 |
| Temperature | Operating: -20 to 50 °C / -4 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interface | Keyboard Wedge; RS-232; RS-485; USB: OEM USB; USB COM; USB HID Keyboard; Optional Ethernet (Standard, Industrial) |
| Light Source | Green LED |
| Reading Angle | Pitch: +/- 75°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70° |
| Reading Indicators | Beeper; Datalogic Three Green Lights (3GL) Good Read Feedback: Datalogic 'Green Spot' on the Code, Dual Good Read LEDs; Good Transmission |
| Scan Range | Long Range |
| Depth of Field | Code 39 5 mils: 3.0 to 32.0 cm / 1.2 to 12.6 in 7.5 mils: 2.0 to 48.0 cm / 0.8 to 18.9 in 10 mils: 2.0 to 66.0 cm / 0.8 to 26.0 in 20 mils: 3.0 to 110.0 cm / 1.2 to 43.3 in 40 mils: 3.0 to 230.0 cm / 1.2 to 90.6 in EAN 13 2.0 to 61.0 cm / 0.8 to 24.0 in |
| Scanner Includes | Scanner Only [No Cable] |
