Datalogic PowerScan PM8500
POSMarket SKU: Z5096
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

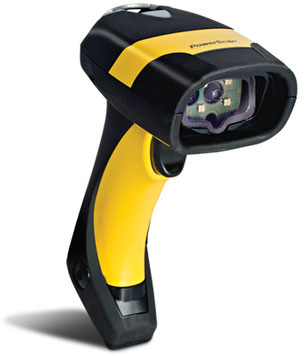

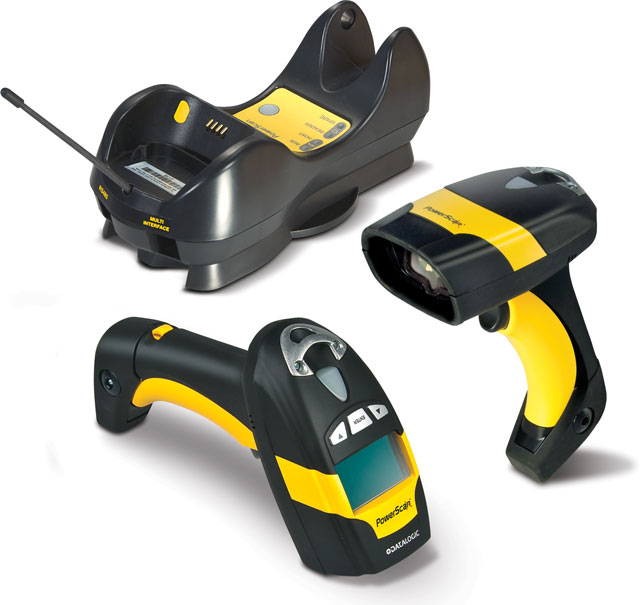

The Datalogic PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System. The PowerScan PM8500 readers feature a high-resolution Megapixel imaging sensor that is capable of outstanding performance in industrial applications. It is offered in three optic models Standard Range and High Density models are for typical barcode reading conditions for medium and high-resolution codes respectively the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes.
Product Overview
Available with your choice of standard range, high density, or wide angle scan engine, the PowerScan PM8500 has a model that meets your specific scanning requirements. A five-dot aiming system improves scanning accuracy, and Datalogic's 3GL system provides scan feedback in noisy environments, illuminating the barcode just scanned and two green LEDs on the scanner itself.

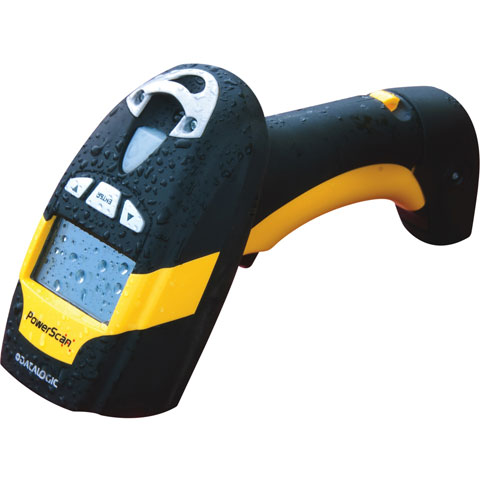

The reinforced body seals the PowerScan PM8500 from dirt and water at an IP65 rating, meaning no dust nor low pressure jets of water can harm the internal components. It can also resist 50 drops of 6 feet to concrete and operate in temperatures as low as 14 degree F, making this a great outdoor or warehouse scanner.
Product Specifications
| GENERAL | ||
| Packaged Quantity | 1 | |
| Type | Barcode scanner - portable | |
| Manufacturer | Datalogic | |
| POWER DEVICE | ||
| Type | barcode scanner charging stand | |
| INPUT DEVICE | ||
| Connectivity Technology | wireless | |
| TTL Decoding | decoded | |
| Keys Qty | 3 | |
| OK Notification | LED indicator, beeper | |
| PRINTER | ||
| Barcodes | Australian Post, Aztec code, British Post, Canadian Post, China Post, Data Matrix, EAN/JAN, GS1 DataBar, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, MaxiCode, Micro QR code, MicroPDF417, PDF417, PLANET, Postnet, QR code, RM4SCC, Royal Mail, UPC-A, UPC-E | |
| BARCODE | ||
| Interface Type | RF | |
| Scan Field Width | 1.18 in - 7.28 in | |
| Interface | RF | |
| Light Source Wave Length | 630-680 nm | |
| Barcodes | Australian Post, Aztec code, British Post, Canadian Post, China Post, Data Matrix, EAN/JAN, GS1 DataBar, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, MaxiCode, Micro QR code, MicroPDF417, PDF417, PLANET, Postnet, QR code, RM4SCC, Royal Mail, UPC-A, UPC-E | |
| Print Contrast Signal (PCS) | 15% | |
| Max Working Distance | 11.8 in | |
| Skew (Degrees) | 40 | |
| Pitch (Degrees) | 35 | |
| Minimum Bar Width | 2 mil | |
| Min Scan Field | 1.18 in | |
| Max Scan Field | 7.28 in | |
| Features | Datalogic Three Green Lights (3GL) | |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked | |
| OK Notification | Beeper, LED indicator | |
| Connectivity Technology | Wireless | |
| Scan Element Type | Visible laser diode | |
| TTL Decoding | Decoded | |
| KEYBOARD | ||
| Keys Qty | 3 | |
| BATTERY | ||
| Included | 1 | |
| NETWORKING | ||
| Wireless Connectivity | RF | |
| DISPLAY | ||
| Native Resolution | 96 x 32 | |
| Character Resolution | 4 lines x 16 characters | |
| MISCELLANEOUS | ||
| Color | black, yellow | |
| Color Category | black, yellow | |
| POWER | ||
| Battery | 1 x lithium ion | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 0 - 95% (non-condensing) | |
| Min Operating Temperature | 14 degree F | |
| Max Operating Temperature | 122 °F | |
| MANUFACTURER WARRANTY | ||
| Type | 3 years warranty | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | portable | |
| Scan Element Type | visible laser diode | |
| HEADER | ||
| Brand | Datalogic | |
| Product Line | Datalogic PowerScan | |
| Model | PM8500 | |
| Country Kits | Europe | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| SOFTWARE | ||
| Type | Datalogic Aladdin | |
| DIMENSIONS & WEIGHT | ||
| Width | 4.5 in | |
| Depth | 2.7 in | |
| Height | 8.3 in | |
| Weight | 13.86 oz | |
| INTERFACE REQUIRED | ||
| Type | USB | |
| Total Qty | 1 | |
| Connector Type | Type A | |
| CABLE DETAILS | ||
| Type | USB cable | |
| Form Factor | external | |
| Included Qty | 1 | |
| Length | 6.6 ft | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 13.86 oz | |
| SLOT REQUIRED | ||
| Type | none | |
| OPERATING SYSTEM / SOFTWARE | ||
| TypeD | atalogic Aladdin | |
| SERVICE & SUPPORT | ||
| Type | 3 years warranty | |
| SHOCK & VIBRATION TOLERANCE | ||
| Drop Specification | 6.5 ft | |
| SERVICE & SUPPORT DETAILS | ||
| Type | limited warranty | |
| Full Contract Period | 3 years, 90 days | |
| Component | cable | |
