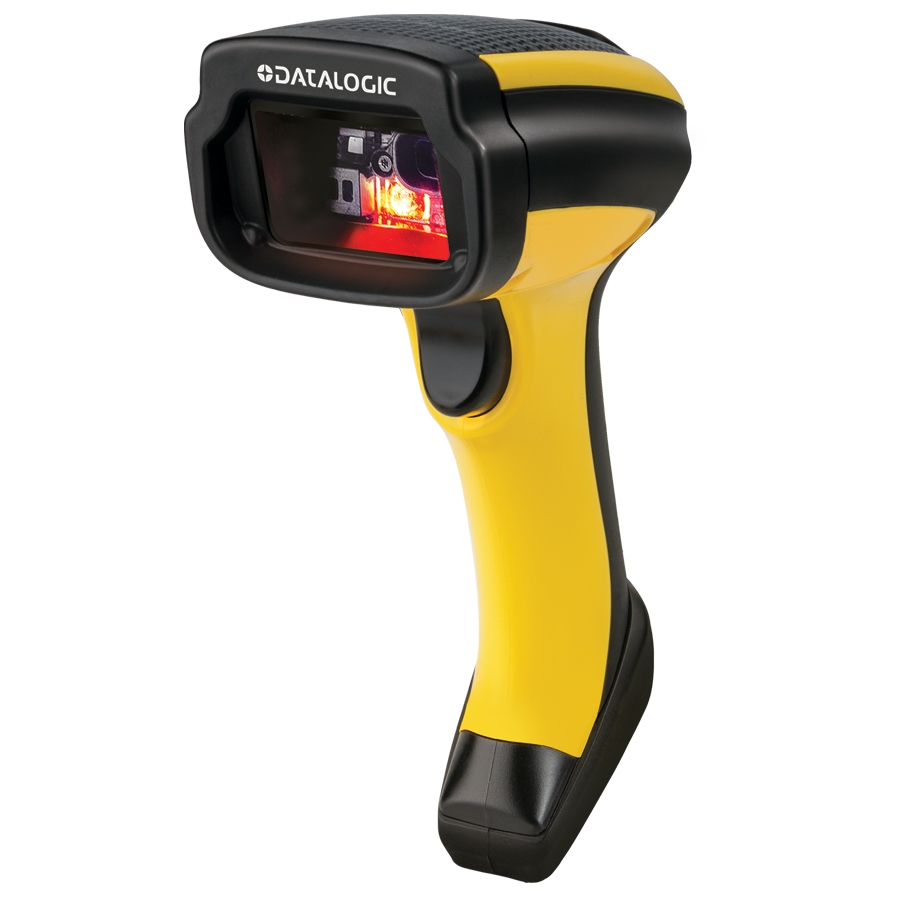

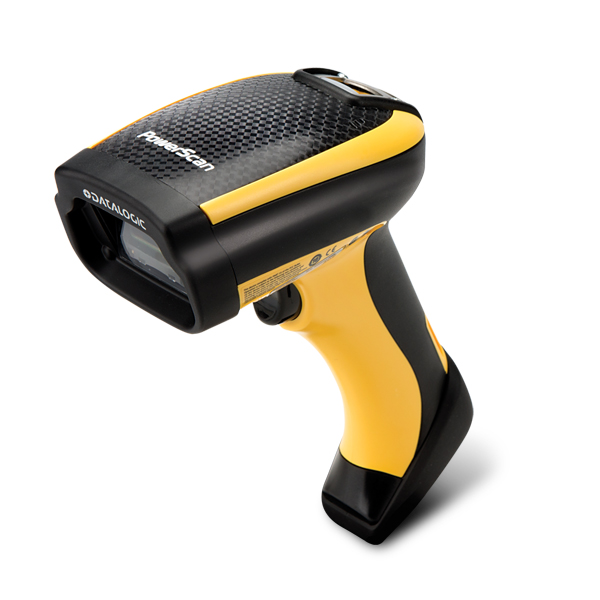

Datalogic Powerscan PBT9501
POSMarket SKU: Z8827
This model is available in 6 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Industrial Area Imager Barcode Scanner
Product Overview

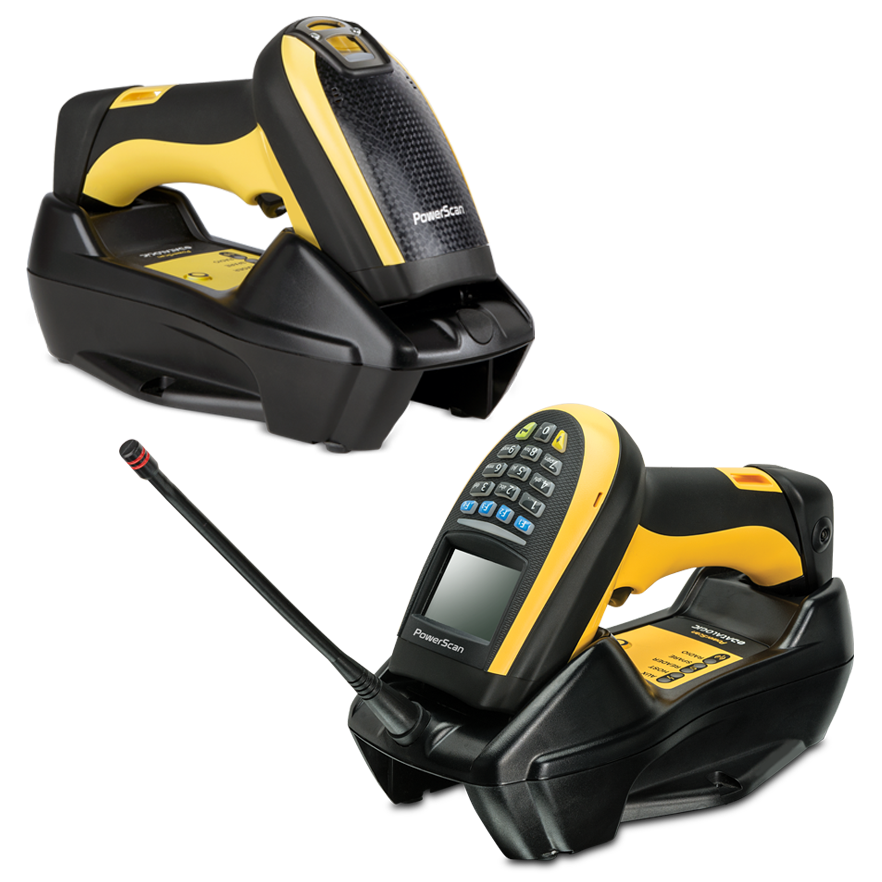

The Powerscan 9501 series of barcode readers are the ultimate industrial handheld scanners, designed and constructed to withstand the toughest environmental conditions. Available in a corded version (PD9531) and 2 Wireless versions (PM9501 & PBT9501) there is a model suited to every industrial application.
The PowerScan PBT9501 features Bluetooth wireless technology and the PM9501 features Datalogic's tried and tested STAR Cordless System narrow band radio.

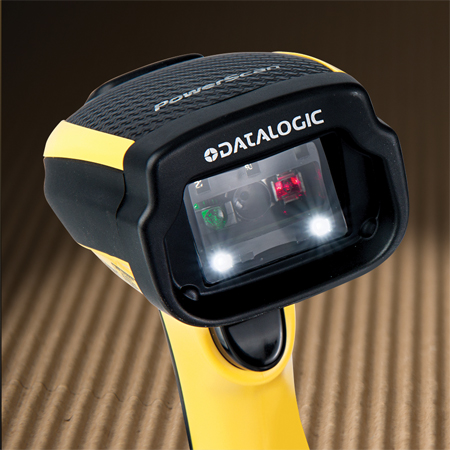

The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.
The 9501 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL) for superior good-read feedback. The patented "Green Spot" technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.
The PowerScan 9501 imagers introduce a new technology with the "Liquid Lens" feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
Product Specifications
| Bluetooth Wireless Technology | Piconet: Max. 7 readers per radio receiver (cradle and commercial dongle) |
| Radio Frequency | 2.40 to 2.48 GHz |
| Decoding Capability | 1D / Linear, 2D, Postal Codes, Stocked Codes |
| Battery | Li-Ion 3350 mAh; Charge Time: External Power: 4.5 Hours; Host Power: 10 Hours |
| Cradle Indicator LEDs | Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow) |
| Ambient Light | 0 - 100,000 lux |
| Drop Resistance | Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface PBT9501: Withstands 50 drops from 2 m / 6.6 ft onto a concrete surface |
| Particulate and Water Sealing | IP65 |
| Temperature | Operating: -20 to 50 °C / -4 to 122 °F Battery Charging: 0 to 40 °C / 32 to 104 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces | Keyboard Wedge RS-232; USB: OEM USB; USB COM; USB HID Keyboard; Optional Ethernet (Standard, Industrial) |
| Dimensions | Cradle: 24 x 10.8 x 9.5 cm / 9.4 x 4.3 x 3.8 in PBT9501: 21.2 x 11 x 7.4 cm / 8.3 x 4.3 x 2.9 in |
| Weight | PBT9501-RB, PBT9501-HPRB, PBT9501-DPMRB: 400 g / 14.1 oz |
| Image Capture | Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
| Image Sensor | PBT9501: 864 x 544; PBT9501-HP: 1280 x 1024 |
| Light Source | Aiming: 630 - 680 nm VLD Illumination: White LEDs |
| Reading Angle | Pitch: +/- 40° Roll (Tilt): 360° Skew (Yaw): +/- 40° |
| Reading Indicators | Datalogic's 3GL (Three Green Lights) technology and loud beeper for good-read feedback: Datalogic 'Green Spot' on the Code, Dual Good Read LEDs |
| Typical Depth of Field: | |
| PBT9501 | 4 mils: 6 to 17 cm / 2.3 to 6.7 in 7.5 mils: Data Matrix 9 to 12 cm / 3.5 to 4.7 in10 mils: Data Matrix 4 to 18 cm / 1.5 to 7 in10 mils: PDF417 2 to 25 cm / 0.8 to 9.8 in 13 mils: 4 to 45 cm / 1.5 to 17.7 in 20 mils: 4 to 55 cm / 1.5 to 21.6 in 40 mils: 4 to 85 cm / 1.5 to 33.4 in |
| PBT9501 | 2.5 mils 2 to 6 cm / 0.8 to 2.3 in4 mils Data Matrix 2 to 6 cm / 0.8 to 2.3 in 10 mils Data Matrix 2 to 20 cm / 0.8 to 7.8 in 10 mils PDF417 2 to 30 cm / 0.8 to 11.8 in 13 mils 3 to 60 cm / 1.1 to 23.6 in 20 mils 3 to 70 cm / 1.1 to 27.5 in 40 mils 3 to 110 cm / 1.1 to 43.3 in |
