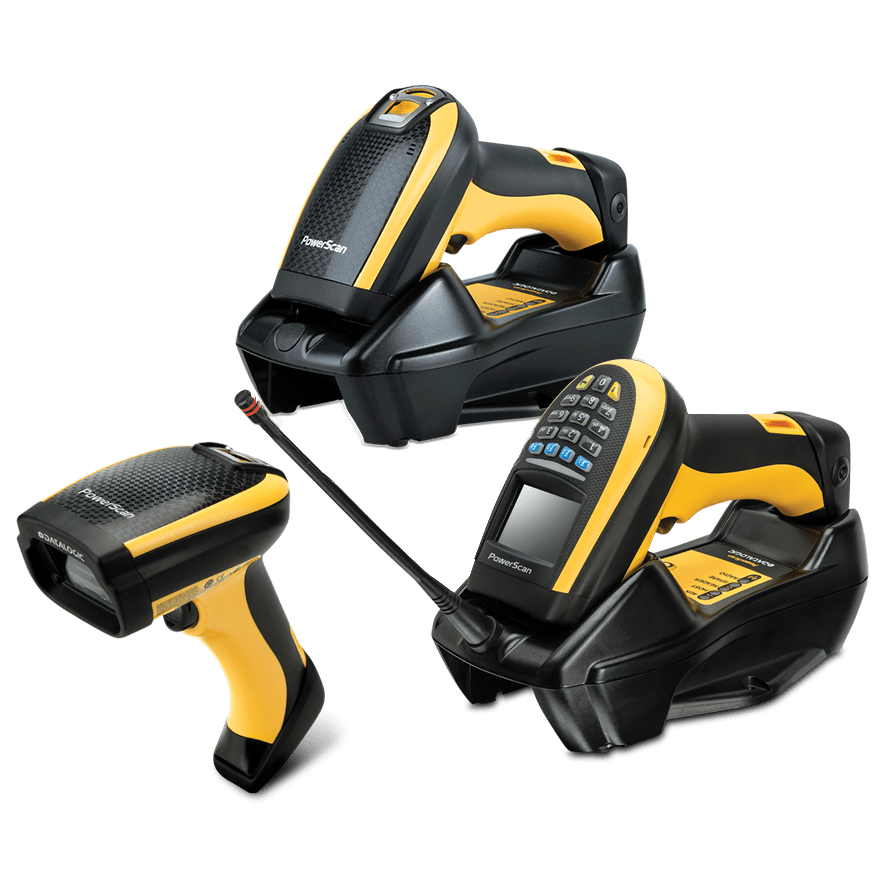

Datalogic PowerScan PBT9100
POSMarket SKU: Z5164
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Cordless Handheld 1D Linear Imager Barcode Scanner
Product Overview
The PowerScan PBT9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features standard Bluetooth wireless technology. This linear imager introduces Datalogic's innovative new scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
Features
- Datalogic's new linear imaging technology
- Bluetooth 3.0 Class 1 compliant
- Supports Bluetooth wireless technology SPP and HID profiles
- Piconet with up to 7 scanners connected to the same base station
- Ethernet Connectivity (Standard and Industrial)
- Datalogic's 3GL (Three Green Lights) and loud beeper for good-read feedback
- User replaceable Lithium-Ion battery
- Operates over a wide range of temperatures
- Water and Particulate Sealing Rating: IP65
- Drop resistance to 2.0 m / 6.6 ft
- Decoding Capability up to 2.5 mils
- EASE OF CARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Product Specifications
| Connectivity Technology: | Wireless |
| Barcode Dimension: | 1D |
| Barcode Symbology Supported | 1D, GS1 DataBar linear codes, UPC/EANUPC/EAN P2/P5 add ons, UPC/EAN Coupons, UPC/EAN Supplements, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5,Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F |
| Image Sensor: | Imager |
| Bluetooth: | Yes |
| Interface: | Keyboard Wedge RS-232; USB: OEM USB; USB COM; USB HID Keyboard; Optional Ethernet (Standard, Industrial) |
| Color: | Yellow /Black |
| Height: | 8.3" |
| Width: | 2.9" |
| Depth: | 4.3" |
| Weight (Approximate): | 14.29 oz |
| Drop Resistance: | Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface |
| TEMPERATURE: | Operating: -20 to 50 °C / -4 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Reading Angle: | Pitch: +/- 75; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70° |
| Reading Indicators: | Beeper; Datalogic Three Green Lights (3GL™) Good Read Feedback; Datalogic ‘Green Spot’ on the Code; |
| Reading Ranges: | Code 39 5 mils: 3.0 to 32.0 cm / 1.2 to 12.6 in 7.5 mils: 2.0 to 48.0 cm / 0.8 to 18.9 in 10 mils: 2.0 to 66.0 cm / 0.8 to 26.0 in 20 mils: 3.0 to 110.0 cm / 1.2 to 43.3 in 40 mils: 3.0 to 230.0 cm / 1.2 to 90.6 in EAN 132.0 to 61.0 cm / 1.2 to 24.0 in Note: Reading performances may change with different symbologies |
