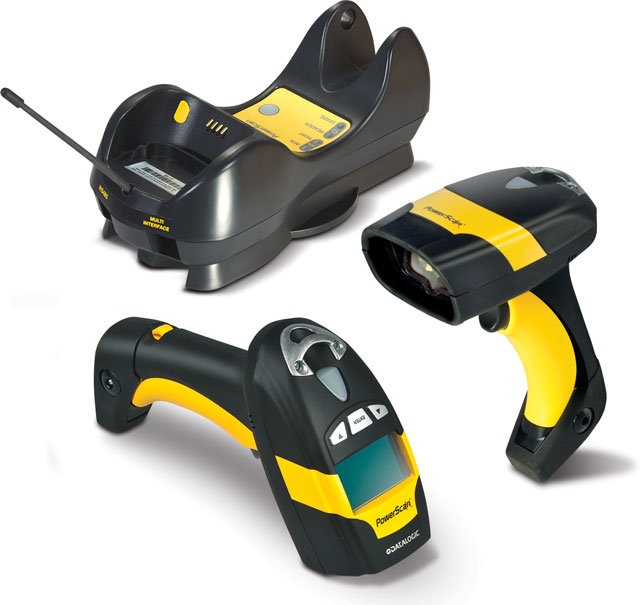

Datalogic Powerscan 8500
POSMarket SKU: Z2320
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The PowerScan 8500 reader offers the richest feature set of Datalogic Scannings industrial handheld products for the omni-directional reading of one-dimensional (1D) and reading of two-dimensional (2D) codes as well as the capability of multiple code reading in a single read.
Product Overview
- Handheld Industrial 2D Imaging Bar code Reader
- Omni-directional reading
- Supports most popular 1D, 2D, Stacked and Postal codes
- Intuitive €œ5 dots€ aiming
- Standard, High Density and Wide Angle optics
- From contact to 30 cm reading range
- User interface: loud beeper and Datalogic€™s 3GL 'good read€™ feedback
- 2 m drop resistance, IP65 sealed
- 3 Year Limited Warranty
Product Specifications
| Scan Engine | Area Imager |
| Light Source | Aiming: 630 - 670 VFD (Visible Laser Diode) Illumination: LED Array |
| Scan Pattern | 1280 x 1024 Pixels |
| Scan Rate | |
| Motion Tolerance | N/A |
| Image Capture | JPEG, TIFF |
| Capture Area | @ 150 mm PD8530: 94 x 75 mm PD8530HD: 87 x 69 mm PD8530WA: 197 x 160 mm |
| Contrast Ratio | 15% Minimum reflective difference |
| Resolution | PD8530: 1D: 4 mils; PDF417: 4 mil; 2D: 6.6 mils PD8530HD: 1D: 2 mils; PDF417: 3 mil; 2D: 4 mils PD8530WA: 1D: 5 mils; PDF417: 5 mil; 2D: 7.5 mils |
| Depth of field | PD8530: 5 mils - 7.5 to 15.5 cm 20 mils - 5.5 to 36.5 cm Data Matrix: 10 mil - 7.0 to 19.5 cm PDF417: 10 mil - 4.0 to 25.5 cm PD8530HD: 3 mils - 4.5 to 8.0 cm 20 mils - 6.0 to 18.5 cm Data Matrix: 10 mil - 4.0 to 10.5 cm PDF417: 10 mil - 3.0 to 13.0 cm PD8530WA: 5 mils - 2.5 to 10.0 cm 20 mils - 1.5 to 32.0 cm Data Matrix: 10 mil - 3.2 to 12.5 cm PDF417: 10 mil - 1.5 to 21.5 cm Performance may be impacted by Bar code quality and environmental conditions |
| Tilt Angle | 360 Degree |
| Pitch Angle | +/- 35 Degree |
| Skew Angle | +/- 40 Degree |
| Ambient Light Immunity | 0 to100,000 Lux |
| Symbologies supported | 1D: Interleaved 2/5, Code 39, Code 32, Code 128, EAN 128, Code 93, UPC/EAN/JAN, CODABAR, GS1 DataBar (formerly RSS) 2D: PDF417, Data Matrix (ECC200), QR (Quick Response), Composite Code, MicroPDF, MacroPDF, MaxiCode, Aztec Postal Codes: POSTNET, PLANET, Japan Post, Australia Post, KIX Code, Royal Mail Code (RM4SCC) |
| Programming Method | Manual: Reads special bar codes Automatic: Software commands through the RS-232 / USB interfaces Datalogic Aladdin: Windows configuration program |
| Indicators/Controls | Polyphonic Beepers; Datalogic's 3GL (Three Green Lights) technology and loud beeper for good read feedback; Datalogic Green Spot on the Code; Dual good read LED's |
| Communication Type | Cabled |
| Interfaces | USB, Keyboard Wedge & RS232 Multi Interface |
| Supply Voltage | 5 -30 VDC |
| Power Consumption | 550 mA @ 5 VDC (typical) 95 mA @ 30 VDC (typical) |
| Drop Specification | Designed to withstand 50 x 2M drops to concrete |
| Environmental Sealing | IP65 |
| ESD Protection | 25 kV |
| Operating Environment | -10° ~ 55 Degree C, Relative Humidity up tp 95% none condensing |
| Storage Environment | -20° ~ 70 Degree C, Relative Humidity up tp 95% none condensing |
| EMC/Safety Standards | The product meets necessary safety and regulatory approvals for its intended use. Complete list in Quick Reference guide |
| External Dimensions (WxDxH) | 66 x 110 x 208 mm |
| Weight | 295 g |
