Datalogic PM9500
from $1,246.03 (incl. GST)
POSMarket SKU: Z1885
This model is available in 6 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Handheld Mobile 2D Imager Barcode Scanner
Product Overview

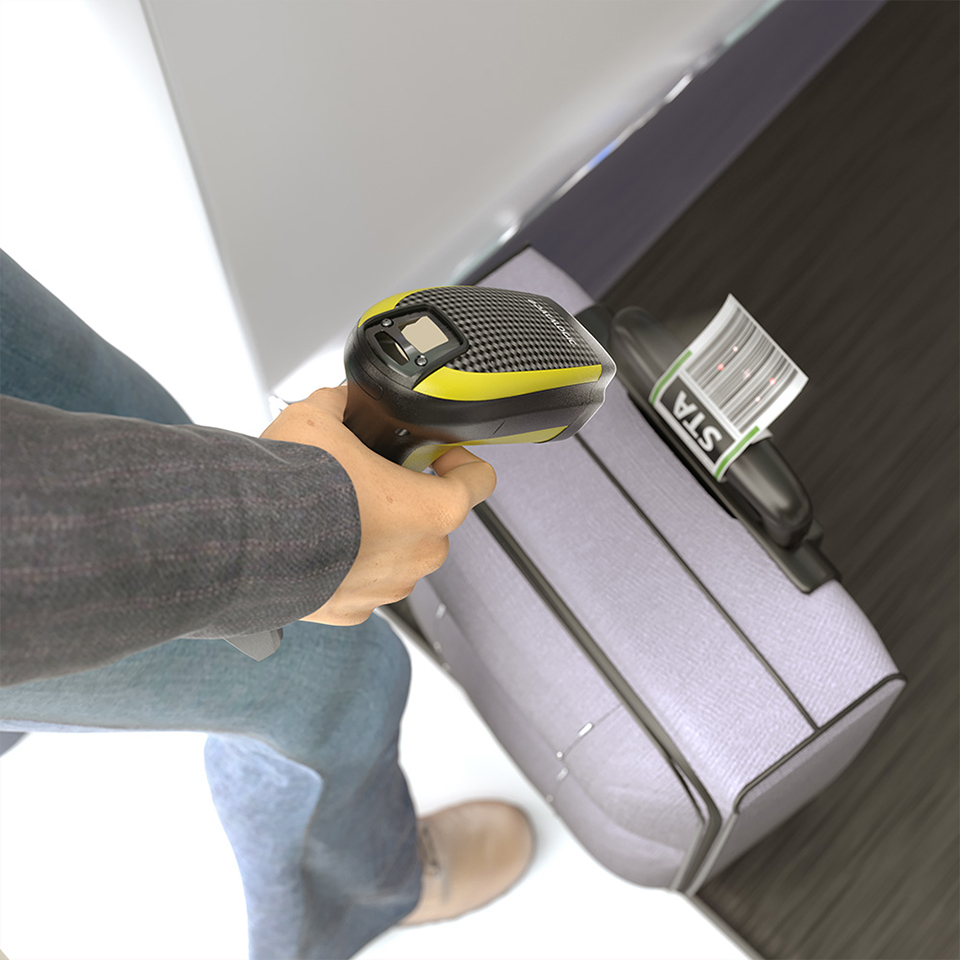

The PowerScan PM9500 area imager is a ruggedized cordless reader suitable for all demanding applications. It is equipped with a new generation of the Datalogic STAR Cordless System, the proprietary radio from Datalogic, which further improves the outstanding features of versatility, ease-of-use and radio range.
The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
Long lasting battery life guarantees more than one shift of intensive scanning.
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort. The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
Features
The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
Long lasting battery life guarantees more than one shift of intensive scanning.
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort. The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
Features
- High-performance Liquid Lens increases the depth-of-field for reading wide and high density codes
- Snappy omnidirectional reading
- Soft white light illumination
- Available with optional display and 4 or 16-key keyboards
- Industrial Cordless 2D Area Imager Scanner
- Point-to-point and multi-point transmission
- Networking and seamless roaming
- High speed 433 MHz radio communications
- Datalogics Motionix motion-sensing technology
- Datalogics 3GL (3 Green Lights) technology and loud beeper for good-read feedback
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Product Specifications
| Scan Engine | Area Imager |
| Light Source | Aiming: 630 - 670 VFD (Visible Laser Diode) Illumination: LED Array |
| Scan Pattern | PM9530; 864 x 544 Pixels PM9530HP; 1280 x 1024 Pixels |
| Scan Rate | |
| Motion Tolerance | N/A |
| Image Capture | Graphic Formats: BMP, JPEG, TIFF GreyScale: 256, 16, 2, JPEG, TIFF |
| Capture Area | N/A |
| Contrast Ratio | 15% Minimum reflective difference |
| Resolution | PM9530; 1D 4 mil, 2D 7.5 mil PM9530HP; 1D 2.5 mil, 2D 4 mil |
| Depth of field | PM9530; 4 mils - 6.0 to 17.0 cm 40 mils - 4.0 to 85 cm Data Matrix: 10 mil - 4.0 to 18.0 cm PDF417: 10 mil - 2.0 to 25.0 cm PM9530HP 2.5 mils - 2.0 to 6.0 cm 40 mils - 3.0 to 110 cm Data Matrix: 10 mil - 2.0 to 20.0 cm PDF417: 10 mil - 2.0 to 30.0 cm Performance may be impacted by Bar code quality and environmental conditions |
| Tilt Angle | 360 Degrees |
| Pitch Angle | +/- 40 Degrees |
| Skew Angle | +/- 40 Degrees |
| Ambient Light Immunity | 0 to100,000 Lux |
| Symbologies supported | 1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes 2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Programming Method | Manual: Reads special bar codes Automatic: Software commands through the RS-232 / USB interfaces Datalogic Aladdin: Windows configuration program |
| Driver available | JavaPOS, OPOS Utilities |
| Indicators/Controls | PM8500: No Display, 1 x Scan Key PM8500-D: Display 4 Lines x 16 Collumns, 1 Scan Key & 3 Key Keypad PM8500-DK: Display 4 Lines x 16 Collumns, 1 Scan Key & 16 Key Keypad Beepers Datalogic's 3GL (Three Green Lights) technology and loud beeper for good read feedback Datalogic Green Spot on the Code Dual good read LED's |
| Communication Type | Datalogic Star Cordless System |
| Communication Technology | 433.92 Mhz Radio Effective radiated power: < 10mW Range (open Air): up to 50 m Seamless roaming Two way communications Point to Point or Multi-point configuration up to 32 Scanners to a base |
| Interfaces | to base: BC9030: RS232, KBW, USB, Wand Multi Interface BC9160: RS232, KBW, USB, Wand, RS485 Multi Interface BC9180: Industrial Ethernet |
| Supply Voltage | Battery: 2150 mAh Li-ion rechargeable Charge time with external power supply: 4 Hours Charge time with Host power: 10 Hours Reads per full charge: 30,000+ Input Voltage for Charge/Communication Base: 10 -30 VDC POT: 5 VDC +/-10% |
| Power Consumption | External Power Supply: 800 mA @ 10 VDC (Charging), 150 mA Typical Operation POT: Max. 500mA |
| Drop Specification | Designed to withstand 50 x 2M drops to concrete |
| Environmental Sealing | IP65 |
| ESD Protection | +/- 20 kV air discharge |
| Operating Environment | -20 Degrees ~ 50 Degrees Celsius, Relative Humidity up tp 95% none condensing Battery Charging: 0 to 45 Degrees Celsius |
| Storage Environment | -40 Degrees ~ 70 Degrees Celsius, Relative Humidity up tp 95% none condensing |
| EMC/Safety Standards | China RoHS, EU RoHS, Complies to R.E.A.C.H, CDRH Class II, IEC 60825 Class 2, IEC 62471 Class 1 LED |
| External Dimensions (WxDxH) | PM9500: 74 x 110 x 212 mm Cradle: 95 x 240 x 108 mm |
| Weight | PM9500: 380 g PM9500-D: 410 g PM9500-DK: 414 g Cradle: 380 g |
