Datalogic PBT9600
POSMarket SKU: Z20840
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

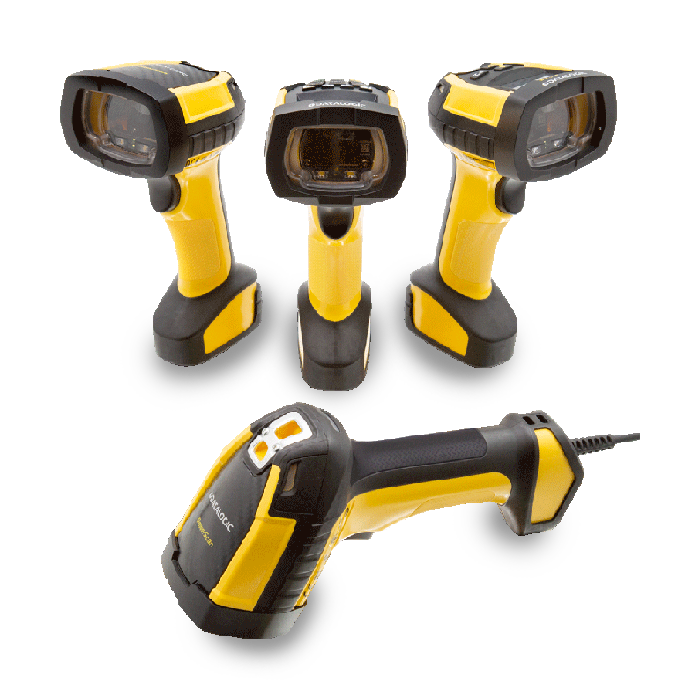

The Powerscan PBT9600 is the latest in Datalogic's renowned Bluetooth Powerscan industrial scanner range
Product Overview
The PowerScan family of barcode readers is built for the toughest industrial environments. Designed for durability, the PowerScan 9600 imagers feature an ultra-rugged construction and a well-balanced ergonomic shape, reducing operator fatigue during daily use.
MOBILITY BOOSTS PRODUCTIVITY

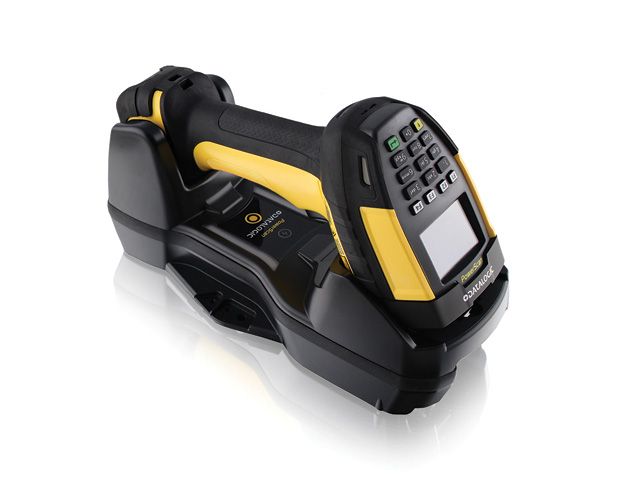

The PowerScan PM9600 cordless model increases efficiency and safety with Datalogic’s STAR Cordless System™. Its bidirectional radio communication and display provide real-time feedback, minimizing errors. The PowerScan PBT9600 model, equipped with Bluetooth® 5.0, seamlessly pairs with any Bluetooth-enabled device or the dedicated Bluetooth base station. The BC9600 base/charger features a modular design with multiple interface plug-ins, supporting RS-232, USB, Standard Ethernet, and Industrial Ethernet protocols.
WIRELESS CHARGING FOR MAXIMUM RELIABILITY
The PowerScan 9600 scanner incorporates Datalogic’s Wireless Charging System, using inductive-charging technology. This eliminates traditional battery contacts and pins, preventing issues like dirt buildup, bending, or breakage—ensuring long-lasting performance in industrial and retail settings.
THREE OPTIC OPTIONS FOR VERSATILE SCANNING
The PowerScan 9600 area imagers are available in three configurations to meet diverse needs:
- Standard Range: Ideal for general barcode scanning at intuitive distances.
- High Performance: Capable of reading high-density barcodes with an extended depth of field for 1D/2D codes.
- Document Capture: Designed for wide-angle barcode reading and document scanning applications.
Engineered for reliability, efficiency, and flexibility, the PowerScan 9600 series is the ultimate solution for demanding scanning environments.
Product Specifications
| Category | Bar code equipment |
| Description | Datalogic PowerScan PM9600 - Barcode scanner - portable - SR - 2D imager - decoded - RF(433 MHz) |
| Manufacturer | Datalogic |
| Dimensions & Weight / Depth | 14 cm |
| Dimensions & Weight / Height | 19.8 cm |
| Dimensions & Weight / Weight | 425 g |
| Dimensions & Weight / Width | 7.9 cm |
| Connectivity Technology | Wireless |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post, Intelligent Mail Barcode, UPC A Composite, UPC E Composite, DotCode |
| Features | ESD (electrostatic discharge) safe, Datalogic Three Green Lights (3GL) |
| Interface Type | RF(433 MHz) |
| Light Source Wave Length | 630-680 nm |
| OK Notification | Beeper, LED indicator, vibration |
| Pitch (Degrees) | 52 |
| Print Contrast Signal (PCS) | 15% |
| Scan Element Type | 2D imager - white LED |
| Scan Engine Focus Range | Standard Range (SR) |
| Sensor Resolution | 1280 x 800 |
| Skew (Degrees) | 52 |
| TTL Decoding | Decoded |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Color | Black, yellow |
| Type | Barcode scanner - portable |
| Compliant Standards | REACH, IP67, IP65, China RoHS, EU RoHS |
