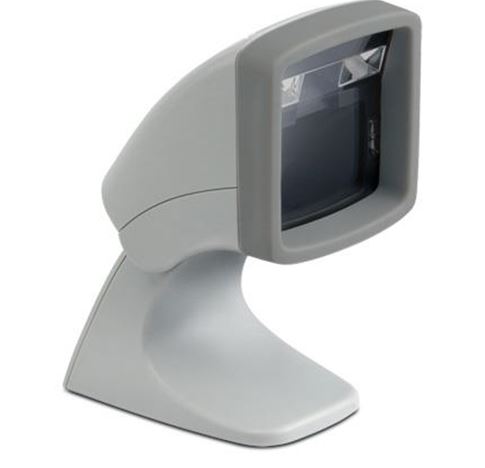

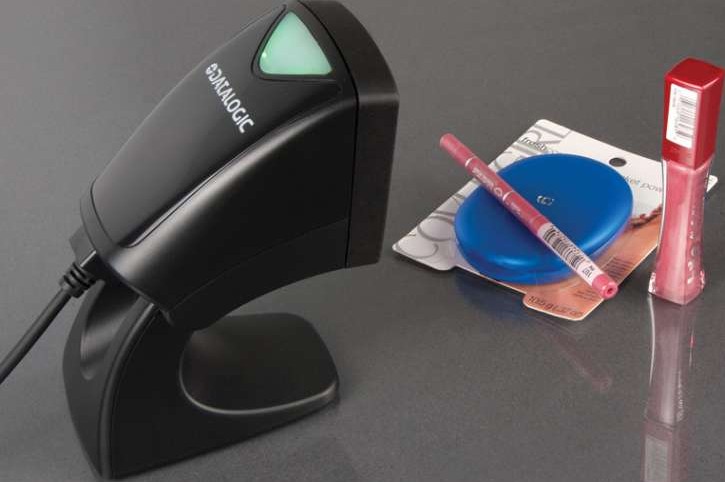

Datalogic Magellan 800i
POSMarket SKU: Z1874

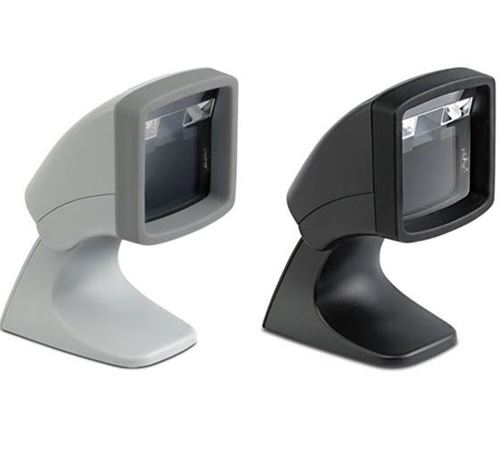

This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.
The Magellan 800i Omni-directional 2D barcode scanner uses Datalogic's latest digital imaging technology to provide fast & efficient reading of 1D and 2D Barcodes. With simple "plug & play" USB interface, you can be up and running in no time. The ability to read barcodes off mobile phone screens and a small footprint with no moving parts, means this scanner is built to last and will not need upgrading.
Product Overview

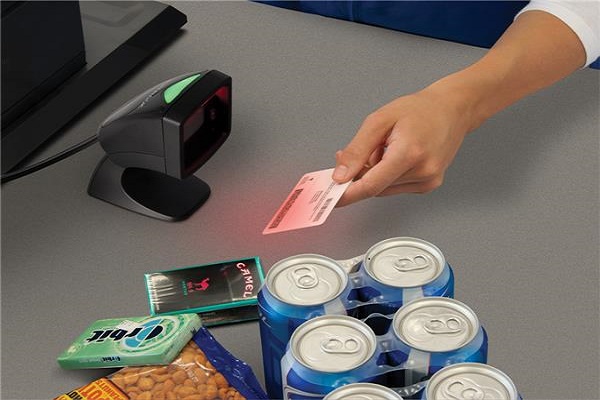

The Magellan 800i reader uses third generation Illumix intelligent illumination technology to optimize light levels for automatically reading bar codes from mobile phones and for capturing images. Illumix technology also provides incredible motion tolerance, exceeding other 2D scanning solutions, enabling both 'sweep' and 'presentation' style scanning techniques.
The Magellan family of value added features (including Diagnostics Reporting, Host Download, and Advanced Label Editing) allow management to use valuable data from the scanner to improve throughput and manage maintenance. In addition, each Magellan 800i reader supports Remote Management Systems to streamline operations and ongoing support across an enterprise.
Features
- Aggressive performance on 1D and 2D codes increases productivity
- Powerful Advanced Data Editing for custom host output
- No moving parts for improved reliability
- Illumix intelligent illumination technology for reading bar codes from mobile phones or laptops
- Ergonomically designed for hands-free or handheld operation
- Small footprint for easy installation into space constrained applications
- Precise imaging scan volume eliminates misreads caused by stray laser scan lines
- Configurable image capture mode to optimize host upload time
- Checkpoint Systems EAS and Interlock compatible
Product Specifications
| PEERFORMANCE | |
| Scan Engine | Area Imager Scanner |
| Light Source | Illumination: LED Aiming: 650 nm VLD |
| Scan Pattern | Linear version: Single Line 2D Version: 752x480 Pixels |
| Scan Rate | N/A |
| Motion Tolerance | N/A |
| Image Capture | Only on 2D version: Graphic Formats: JPEG |
| Contrast Ratio | 25% Minimum reflective difference |
| Resolution | 0.130mm / 5 mils |
| Tilt Angle | 0 - 360 Degreees |
| Pitch Angle | +/- 60 Degrees |
| Skew Angle | +/- 60 Degrees |
| SCANNING RANGE | |
| Depth of field | 1D Version: 5 mils - 0 to 2.5 cm 7.5 mils - 0 to 8.2 cm 10 mils - 0 to 12.7 cm 13 mils UPC - 0 to 15.2.0 cm 2D Version: 1D Codes as Above Data Matrix: 10 mils - 0.6 to 3.1 cm Data Matrix: 24 mils - 0 to 12.7 cm EAN 13: 13 mils - 0.8 to 42.2 cm PDF417: 6.6 mils - 0 to 7.6 cm PDF417: 10 mils - 0 to 12.7 cm PDF417: 15 mils - 0 to 15.2 cm QR Code: 10 mils - 2.3 to 14.3 cm Performance may be impacted by Bar code quality and environmental conditions |
| DECODING CAPABILTY | |
| Symbologies supported | 1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes 2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Programming Method | Manual: Reads special bar codes Automatic: Software commands through the RS-232 / USB interfaces Datalogic Aladdin: Windows configuration program Remote Host Download (Lowers service costs and improves operations) |
| UTILITIES | |
| Driver available | JavaPOS, OPOS Utilities |
| Indicators/Controls | Scanner Indicators: Good Read LED Adjustable Tone & Volume beeper |
| COMMUNICATION | |
| Communication Type | Corded |
| Interfaces | USB: OEM USB, USB COM, USB HID Keyboard RS232 |
| ELECTRICAL | |
| Supply Voltage | 5 VDC +/-10% |
| Power Consumption | Operating (Typical): <350 mA Standby/Idle (Typical): <250 mA @ 5 VDC |
| ENVIRONMENTAL | |
| Indoor: 0 to 6,000 Lux | Outdoor: 0 to 86,000 Lux |
| Drop Specification | Withstands repeated drops from 1.2 m onto a concrete surface |
| Environmental Sealing | IP52 |
| ESD Protection | +/- 20 kV air discharge |
| Operating Environment | 0 ~ 40 C Relative Humidity 5 - 95% none condensing |
| Storage Environment | -40 ~ 70 C, Relative Humidity 5 - 95% none condensing |
| PHYSICAL | |
| External Dimensions (WxDxH) | Scanner only : 76 x 109 x 151 mm |
| Weight | 306.2g |
| OTHER | |
| EMC/Safety Standards | The product meets necessary safety and regulatory approvals for its intended use. Complete list in Quick Reference guide Complies to EU RoHS, China RoHS |
