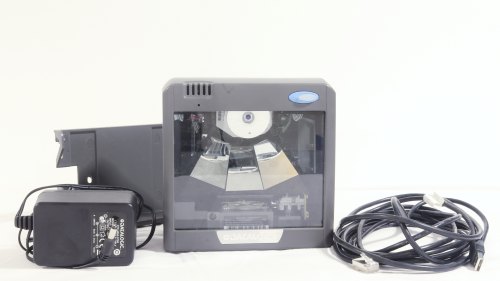

Datalogic Magellan 2200VS
POSMarket SKU: Z2336
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
Aggressive Omni Directional performance and intuitive operation reduces checker training and speeds checkout for better customer service. With OmegaTek Productivity Technology, which Improves front end checkout productivity by reducing or eliminating re-scans or no-scans.
Product Overview
- OmegaTek Productivity Technology
- Aggressive vertical scan volume
- FirstStrike advanced decoding software
- RSS Decoding capability
- Flash memory for easy software upgrades
- Multiple interface solution supports all popular host interfaces
- Powered auxiliary RS-232 port for easy integration of a handheld scanner
- Host diagnostic reporting
- Optional EAS functionality
- Optional Productivity Index Reporting Software
- 2005 Sunrise compliant
Product Specifications
| Scan Engine | Omni-Directional Laser Scanner |
| Light Source | 650 nm |
| Scan Pattern | 20 Scan Lines |
| Scan Rate | |
| Contrast Ratio | Min. 25% |
| Resolution | 5 mil |
| Depth of field | Read Height 15.2 cm |
| Tilt Angle | N/A |
| Pitch Angle | N/A |
| Ambient Light Immunity | N/A |
| Symbologies supported | 1D: Auto discriminates all standard 1D codes including GS1 Databar linear codes |
| Programming Method | Magellan On-Screen Programming (OSP) configuration software is available for download at no charge. |
| Driver available | JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge. |
| Indicators/Controls | Beeper (Adjustable Tone & Volume) |
| Interfaces | IBM 46XX, RS232, IBM USB, USB Keyboard, USB COM, Keyboard Wedge |
| I/O Ports | Powered RS232 Aux. Port EAS: Checkpoint Systems: Integrated Hardware will work with Counterpoint IV, V, VI & VII models Sensormatic: Good read acknowledgement Micro-SD card reader to help with software maintenance and upgrades |
| Supply Voltage | AC Input: 90-265 VAC, 47-63 Hz Output; 10V 800mA |
| Power Consumption | Max 9.6 Watts, nominal 4.0 Watts, Sleep mode 2.5 Watts |
| ESD Protection | 25 kV |
| Operating Environment | 10 ~ 40 °C RH: 5-95% Non Condensing |
| Storage Environment | -40 ~ 70 °C RH: 5-95% Non Condensing |
| EMC/Safety Standards | The product meets necessary safety and regulatory approvals for its intended use. Complete list in Quick Reference guide Complies to EU RoHS Caution Laser Radiation - Do not stare into beam; EN 60825-1 Class 2; IEC 60825-1 Class 2 |
| External Dimensions (WxDxH) | 15.2 x 15.2 x 9.7 cm |
| Weight | 1.1 Kg |
Product Videos
Please contact our team using the Ask an Expert form or call us on 1300 737 998.
