Datalogic Magellan 1000i
POSMarket SKU: Z2330
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
Aggressive imaging performance and intuitive operation reduces checker training and speeds checkout for better customer service. New imaging technology eliminates moving parts associated with laser scanners for improved reliability. Hands-free scanning for small, easily handled items, handheld scanning for bulkier items Precise imaging scan volume eliminates misreads caused by stray laser scan lines.
Product Overview
- Omni-directional Imaging Scanner
- No Moving Parts, improved reliability
- Swipe or Presentation scanning
- Flash Memory for easy upgrades
- Multi interface support build in
- Checkpoint EAS Compatible
- Optional target scanning mode
- Optional tilting stand

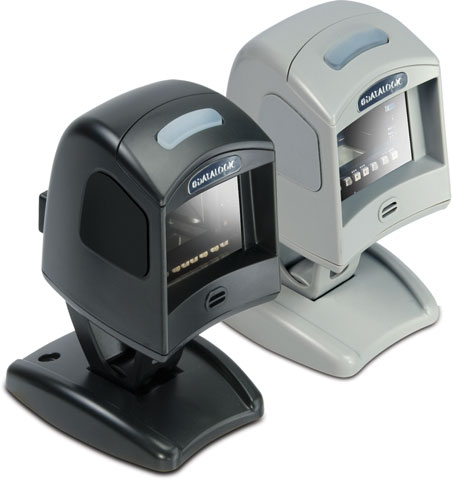

- Available in Black or Light Grey
Product Specifications
| GENERAL | ||
| Packaged Quantity | 1 | |
| Type | Barcode scanner - desktop - stationary | |
| Manufacturer | Datalogic | |
| POWER DEVICE | ||
| Type | power adapter | |
| INPUT DEVICE | ||
| Connectivity Technology | wired | |
| TTL Decoding | decoded | |
| OK Notification | LED indicator, beeper | |
| PRINTER | ||
| Barcodes | Bookland, Codabar, Code 128, Code 39 Full ASCII, Code 93, EAN/JAN, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, Italy Pharmacode, MSI-Plessey, UCC/EAN-128, UPC-A, UPC-E | |
| BARCODE | ||
| Interface Type | serial RS-232 | |
| Type | stationary | |
| Interface | RS-232 | |
| Barcodes | Bookland, Codabar, Code 128, Code 39 Full ASCII, Code 93, EAN/JAN, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, Italy Pharmacode, MSI-Plessey, UCC/EAN-128, UPC-A, UPC-E | |
| Print Contrast Signal (PCS) | 25% | |
| Skew (Degrees) | 75 | |
| Pitch (Degrees) | 65 | |
| Minimum Bar Width | 5 mil | |
| Decode Capability | EAN/JAN, Code 93, UCC/EAN-128, GS1 DataBar, Bookland, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Italy Pharmacode, Codabar, Code 128, Interleaved 2 of 5, MSI-Plessey, GS1 DataBar Omnidirectional, GS1 DataBar Expanded | |
| Scan Mode | Fixed projection | |
| OK Notification | Beeper, LED indicator | |
| Scan Speed | 1170 line / sec | |
| Connectivity Technology | Wired | |
| TTL Decoding | Decoded | |
| BATTERY | ||
| Form Factor | none | |
| MISCELLANEOUS | ||
| Color | black | |
| Color Category | black | |
| POWER | ||
| Electric Current Required | 300 mA (standby), 400 mA (operating) | |
| Electric Current Required | 300 mA (standby), 400 mA (operating) | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 5 - 95% | |
| Min Operating Temperature | 32 F | |
| Max Operating Temperature | 104 F | |
| MANUFACTURER WARRANTY | ||
| Type | 2 years warranty | |
| SCANNER | ||
| Typebar | code scanner | |
| Form Factor | desktop | |
| Scan Mode | fixed projection | |
| Scan Speed | 1170 line/sec | |
| HEADER | ||
| Brand | Datalogic | |
| Product Line | Datalogic Magellan | |
| Model | 1000i | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| DIMENSIONS AND WEIGHT | ||
| Width | 2.8 in | |
| Depth | 3.7 in | |
| Height | 3.3 in | |
| Weight | 6.98 oz | |
| INTERFACE REQUIRED | ||
| Type | RS-232 | |
| Total Qty | 1 | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 6.98 oz | |
| SLOT REQUIRED | ||
| Type | none | |
| SERVICE & SUPPORT | ||
| Type | 2 years warranty | |
| SHOCK & VIBRATION TOLERANCE | ||
| Drop Specification | 4 ft to concrete | |
| SERVICE AND SUPPORT DETAILS | ||
| Type | limited warranty | |
| Full Contract Period | 2 years | |
| GENERAL | ||
| Manufacturer | Datalogic | |
