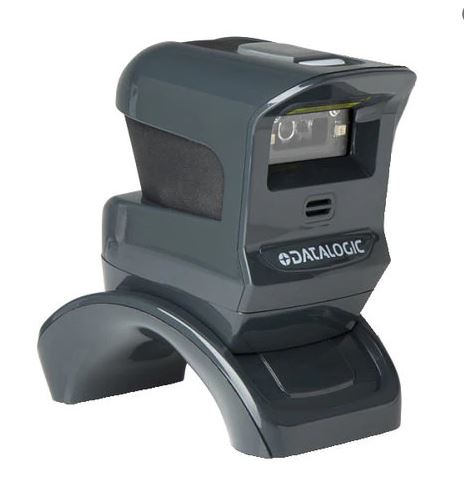

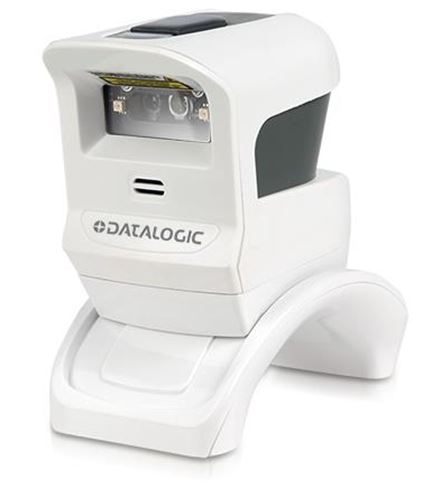

Datalogic Gryphon GPS4400
POSMarket SKU: Z2103
This model is available in 6 different configurations. Select a configuration below or contact our experts on 1300 737 998.
The Gryphon GPS4400 2D area imager by Datalogic is one of the most compact retail presentation scanners on the market. The compact body with stylish design allows it to fit in areas with limited space while still offering the maneuverability needed to handle a multitude of differently sized items.
Product Overview
The Datalogic Gryphon GPS4400 on-counter, omnidirectional presentation scanner offers hands-free scanning of small, easily handled items and handheld scanning operation for bulkier items. The Gryphon I GPS4400 reader's compact size makes it the ideal solution for space-constrained environments.
The GPS4400 Series presents The Gryphon GPS4490 area imager, a full 2D presentation corded scanner in a compact and stylish body. This reader's compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner. Capable of reading codes from mobile phones, PDAs and computer display screens, the GPS4400 presentation scanner also features high motion tolerance, snappy reading and offers excellent performance on decoding poor or damaged bar codes. The Gryphon GPS4490 offers good-read visual confirmation with Datalogic's 'Green Spot' technology as well as supporting advanced features like image / signature capture and document scanning, eliminating the need for separate equipment at the POS.
Features
- Snappy omni-directional reading
- Reads all 1D and 2D barcodes
- Intuitive aiming system
- Compact, ergonomic design is ideal for hands-free or handheld operation
- Illumination system optimized to allow easy reading of bar codes from mobile phones, laptops or PDAs
- Image capture
- Datalogic's patented "Green Spot" technology
- Datalogic's EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Product Specifications
| READING PERFORMANCE | |
| Light Source | Illumination: 625nm LED Aiming: 650 nm VLD |
| Scan Pattern | 752 x 480 Pixels |
| Motion Tolerance | 25 IPS |
| Image Capture | Graphic Formats: BMP, JPEG, TIFF GreyScale: 256, 16, 2, JPEG, TIFF |
| Capture Area | Field of View: 40 Degrees; H x 26 Degrees; V |
| Contrast Ratio | 25% Minimum reflective difference |
| Resolution | Standard Range (SR): 1D Linear Max. 0.102mm / 4 mils Datamatrix 0.178mm / 7 mils |
| Depth of field | Code 39: 5 mils - 2.6 to 18.8 cm Code 39: 10 mils - 0.0 to 37.9 cm Data Matrix: 10 mils - 2.3 to 14.5 cm Data Matrix: 15 mils - 0.0 to 23.2 cm EAN 13: 13 mils - 0.8 to 42.2 cm PDF417: 10 mils - 0 to 22.4 cm QR Code: 10 mils - 2.3 to 14.3 cm Performance may be impacted by Bar code quality and environmental conditions |
| Tilt Angle | 180 Degrees |
| Pitch Angle | +/- 40 degrees |
| Skew Angle | +/- 40 degrees |
| Ambient Light Immunity | 0 - 100,000 Lux |
| Symbologies supported | 1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes 2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Programming Method | Manual: Reads special bar codes Automatic: Software commands through the RS-232 / USB interfaces Datalogic Aladdin: Windows configuration program Remote Host Download (Lowers service costs and improves operations) |
| Driver available | JavaPOS, OPOS Utilities |
| Indicators/Controls | Scanner Indicators: Good Read LED "Green spot" on the code Adjustable Tone & Volume beeper |
| Communication Type | Corded |
| Interfaces | USB: OEM USB, USB COM, USB HID Keyboard RS232 |
| ENVIRONMENTAL | |
| Supply Voltage | 5 VDC +/-5% |
| Power Consumption | Typical 175 mA, Max. 400 mA |
| Drop Specification | Withstands repeated drops from 1.2 m onto a concrete surface |
| Environmental Sealing | IP52 |
| ESD Protection | +/- 16 kV air discharge |
| Operating Environment | 0° ~ 40 Degrees Celsius, Relative Humidity 0 - 95% none condensing |
| Storage Environment | -40 Degrees~ 70& Degrees Celsius, Relative Humidity 0 - 95% none condensing |
| EMC/Safety Standards | Complies to EU RoHS CDRH Class II, EN 60825-1 Class 2, IEC 60825 Class 2 |
| PHYSICAL | |
| Colors | Black; White |
| External Dimensions (WxDxH) | Scanner only : 64 x 74 x 95mm Scanner with Stand: 73 x 121 x 107mm |
| Weight | Scanner only : 178g Scanner with Stand: 295g |
