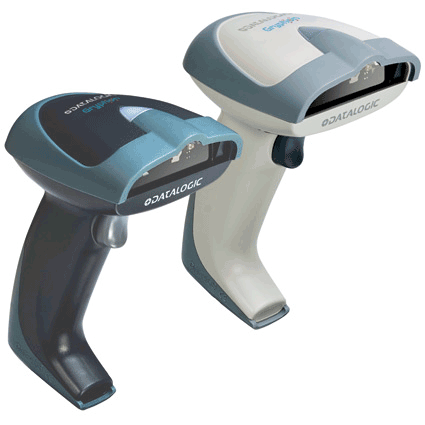

Datalogic Gryphon Desk 2D Plus
POSMarket SKU: Z5133
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
Featuring outstanding snappiness and omnidirectional reading, the Datalogic Gryphon Desk 2D Plus improves productivity and efficiency in a wide range of applications. It supports the most common symbologies including 1D 2D and postal codes plus stacked and composite codes like PDF417 and GS1 DataBar. The Gryphon Desk 2D Plus reader can also capture the entire image of an object to be identified regardless of its orientation making it ideal for image-based applications such as signature capture and wide document scanning.
Product Overview
Product Specifications
| GENERAL | ||
| Packaged Quantity | 1 | |
| Type | Barcode scanner - handheld | |
| Manufacturer | Datalogic | |
| INPUT DEVICE | ||
| Connectivity Technology | wired | |
| TTL Decoding | decoded | |
| OK Notification | LED indicator, beeper | |
| PRINTER | ||
| Barcodes | Australian Post, Aztec code, Canadian Post, China Post, Data Matrix, EAN/JAN, GS1 DataBar, Japanese Post, Kix (Netherlands) Post, Korea Post, MaxiCode, MicroPDF417, PDF417, PLANET, Postnet, QR code, RM4SCC, Royal Mail, UPC-A, UPC-E | |
| BARCODE | ||
| Interface Type | USB / serial RS-232 / keyboard wedge / wand | |
| Interface | RS-232, USB, keyboard wedge, wand | |
| Light Source Wave Length | 630-670 nm | |
| Barcodes | Australian Post, Aztec code, Canadian Post, China Post, Data Matrix, EAN/JAN, GS1 DataBar, Japanese Post, Kix (Netherlands) Post, Korea Post, MaxiCode, MicroPDF417, PDF417, PLANET, Postnet, QR code, RM4SCC, Royal Mail, UPC-A, UPC-E | |
| Print Contrast Signal (PCS) | 23% | |
| Max Working Distance | 8.7 in | |
| Skew (Degrees) | 40 | |
| Pitch (Degrees) | 35 | |
| Minimum Bar Width | 4 mil | |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, RM4SCC, Royal Mail | |
| Scan Mode | Single-pass | |
| OK Notification | Beeper, LED indicator | |
| Connectivity Technology | Wired | |
| Scan Element Type | Visible laser diode | |
| TTL Decoding | Decoded | |
| MISCELLANEOUS | ||
| Color | dark gray | |
| Color Category | gray | |
| POWER | ||
| Electric Current Required | 120 mA (standby), 245 mA (operating) | |
| Electric Current Required | 245 mA (operating), 120 mA (standby) | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 0 - 95% | |
| Min Operating Temperature | 32 °F | |
| Max Operating Temperature | 122 °F | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | handheld | |
| Scan Mode | single-pass | |
| Scan Element Type | visible laser diode | |
| HEADER | ||
| Brand | Datalogic | |
| Product Line | Datalogic Gryphon | |
| Model | Desk 2D Plus | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| DIMENSIONS & WEIGHT | ||
| Width | 3.2 in | |
| Depth | 3.9 in | |
| Height | 7 in | |
| Weight | 6.98 oz | |
| INTERFACE REQUIRED | ||
| Type | RS-232, USB, keyboard wedge | |
| Total Qty | 1 | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 6.98 oz | |
| SLOT REQUIRED | ||
| Type | none | |
| SHOCK & VIBRATION TOLERANCE | ||
| Drop Specification | 6 ft to concrete | |
| GENERAL | ||
| Manufacturer | Datalogic | |
