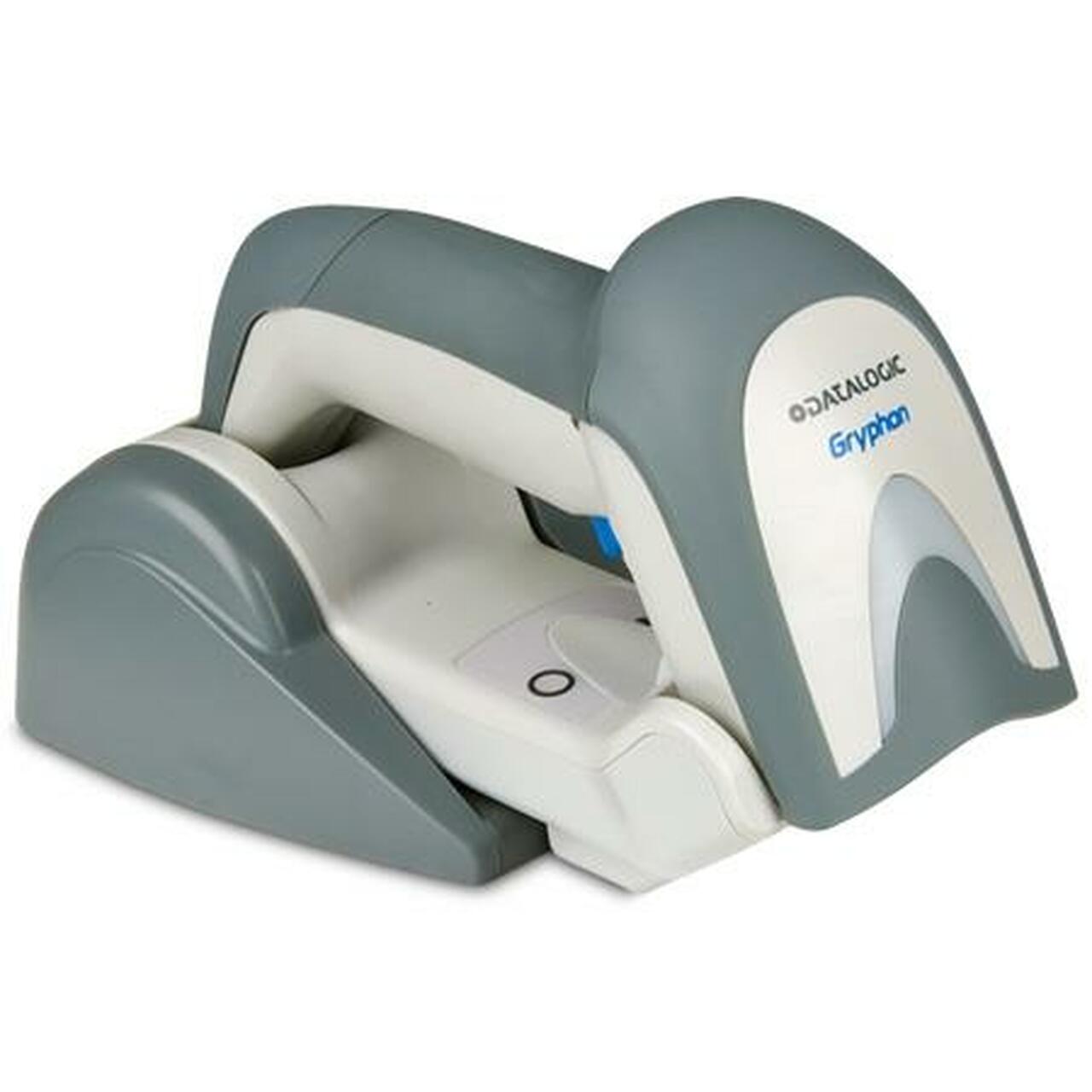

Datalogic Gryphon Bluetooth

POSMarket SKU: Z5101

This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

The Datalogic Gryphon Bluetooth has the same powerful features as the Gryphon series with the addition of the latest in wireless communication Bluetooth technology. The Datalogic Gryphon Bluetooth provides cordless operation up to 33ft and easily integrates with other existing Bluetooth devices. With a host of features and an affordable price the Gryphon Bluetooth is the newest addition to the successful Gryhon family.

Product Overview

The Datalogic Gryphon Bluetooth is the newest member of the successful Datalogic Gryphon mobile family. They share the same powerful architecture of the other models with a special addition: the latest innovation in the wireless communication, Bluetooth technology. This technology provides the operator with wider mobility and no cable constraint. Bluetooth is a standard defined worldwide, and it allows various devices manufactured by different companies to easily connect and communicate with each other. The optimized optics of the Datalogic Gryphon Bluetooth allow reading of the most popular standard codes with superior depths of field from near contact to over 43 cm (long range version). The 'green spot' produced by the Datalogic Gryphon Bluetooth provides 'good reading' feedback directly on the code, useful in under-lighted or noisy environments.

Product Specifications

BLUETOOTH RADIO COMMUNICATION
CONFORMITYR and TTE and Bluetooth 1.1 Qualified 802.11b co-existence
RADIO FREQUENCY2.4 to 2.48 GHz
COMMUNICATIONSPP (Serial Port Profile) Bluetooth 1.1 compliant
EFFECTIVE RADIATED POWERUp to 4 dBm transmit power for class 2 operation
BIT RATEUp to 921 Kbps
RADIO RANGE10 m in a typical environment
ELECTRICAL CHARACTERISTICS
POWER SUPPLYDirect plug-in 9-28 VDC (C-Gryphon B/C)
BATTERY TYPE2 AA NiMh batteries
RECHARGE TIME4 hours max.
OPERATING AUTONOMY24,000 reads - NiMh
POWER CONSUMPTION8W max. (C-Gryphon B/C)
MECHANICAL CHARACTERISTICS
DIMENSIONS208 x 107 x 55.5 mm
WEIGHT280 g (Gryphon„¢ BT with batteries); 250 g (C-Gryphon B/C)
CASE MATERIALABS and Polycarbonate, plus co-moulded rubber
PERFORMANCE
SENSORCCD solid state (3648 pixels)
MAX. SCAN RATE270 scans/sec
MAX. RESOLUTION0.076 mm (3 mils)
PRINT CONTRAST RATIO (min.)pcs=15%
INTERFACESRS232 (C-Gryphon B/C)
READING ANGLESkew: +/-80; Pitch: 65 Deg Tilt: +/-35 Deg (EAN13, M=0.8, PCS=0.9)
