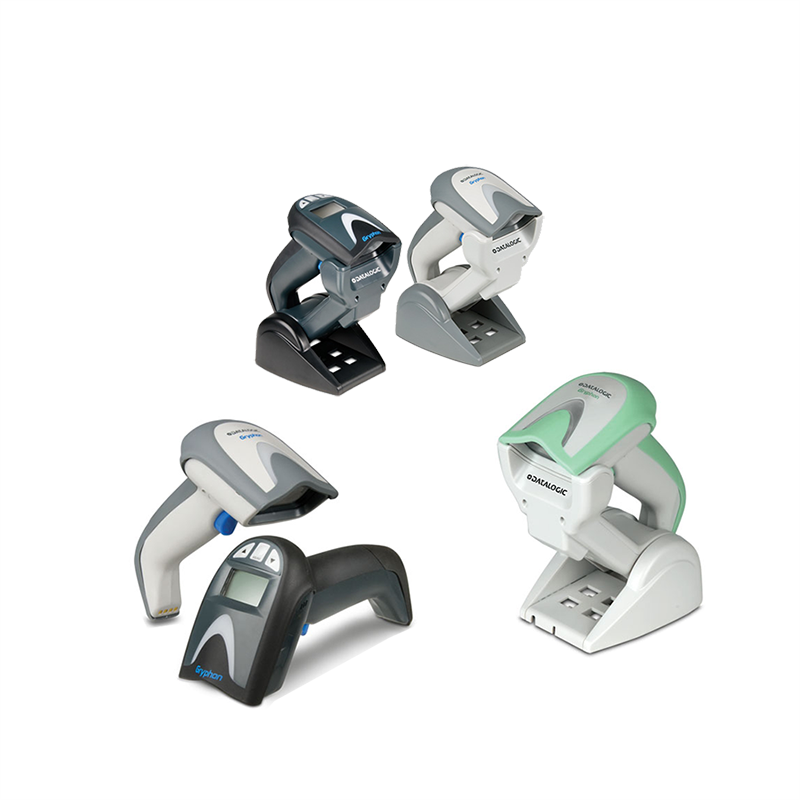

Datalogic GM4100
POSMarket SKU: Z2080
This model is available in 6 different configurations. Select a configuration below or contact our experts on 1300 737 998.
The Datalogic's exclusive patented 'Green Spot' for good read feedback directly on the code, it helps to improve productivity especially in noisy environments. When using the product with the cradle at a 45 position, the green spot can work as an aiming system remaining on to aid in positioning the code for quick and intuitive reading.
Product Overview

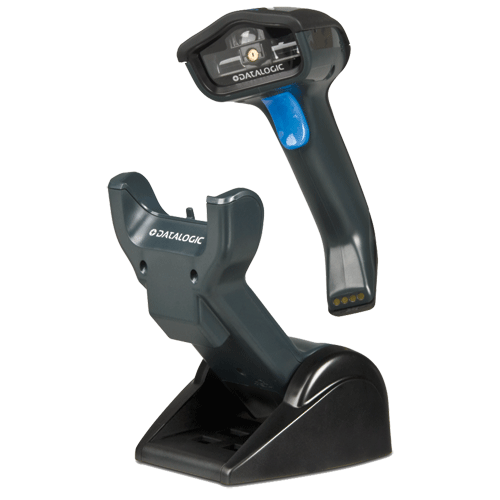

Standard multi-interface capabilities (GM4130) provide host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation while IBM interface models (GM4110) provide connectivity via IBM 46XX, USB and RS-232 emulation. The Datalogic configuration program provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Features
- Cordless Handheld Linear Imager Scanner
- Fastest speed-to-read: 325 reads/second
- 433 MHz Radio frequencies
- Radio Range (open air) up to 30.0 m for 433 MHz
- Optional display with 3-Key keypad
- Point-to-point and multi-point transmission

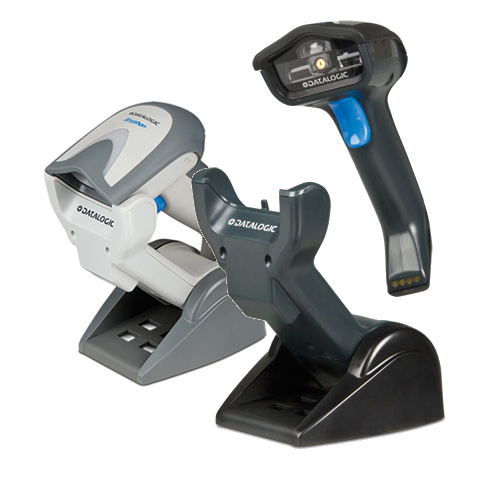

- Datalogic's patented 2-position cradle with Scan-While-Charging capability
- Batch Mode capability (>1200 codes stored in memory)
- Drop resistance to 1.8 m / 5.9 ft
- Long lasting user-replaceable Lithium-Ion battery
Product Specifications
| Scan Engine | CCD Solid State |
| Light Source | Dual LED Array 630-670nm |
| Scan Pattern | Single Line |
| Scan Rate | Up to 325 Reads/sec |
| Contrast Ratio | 15% minimum reflective difference |
| Resolution | Minimum 3 mil (Code 39, PCS 0.9) |
| Depth of field | 6.0 to 18 cm on 5 mils barcode 3.5 to 30 cm on 7.5 mils barcode 2.0 to 45 cm on 10 mils barcode 3.0 to 60 cm on 13 mils barcode 3.0 to 80 cm on 20 mils barcode |
| Tilt Angle | +/- 35 deg. |
| Pitch Angle | +/- 65 deg. |
| Skew Angle | +/- 65 deg. |
| Ambient Light Immunity | 0 ~ 100000 Lux |
| Symbologies supported | Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar linear codes Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar Stacked Omni-directional |
| Programming Method | Manual: Reading special bar codes Automatic: (with RS-232) S/W commands through the serial port ALADDIN: Windows configuration program |
| Driver available | JavaPOS, OPOS Utilities |
| Indicators/Controls | Scanner Indicators: Good Read LED "Green spot" on the code Adjustable tone beeper Cradle Indicators: Battery charging (Red) Charge completed (Green) Power/Data (Yellow) |
| Operating Modes | Trigger, Auto-trigger, Scan while Charging |
| Communication Type | Datalogic Star Cordless System |
| Communication Technology | Radio Frequency: 433.92 MHz Effective Radiated Power: <10 mW Radio Range : 30m open air Max 16 readers per radio receiver Coexisting Systems: max. 2048 readers in the same area Point to point communications |
| Interfaces | BC4030: USB, RS232, Wedge & Wand Multi Interface BC4010: RS-232, IBM 46XX, USB Multi-Interface |
| Supply Voltage | 4.75-14.0 VDC Battery: 2100mAH Li-ion Rechargeable Charge Time: 4-5 Hours for full charge 50,000 Scans/full charge |
| Power Consumption | Charging : Typical < 8W Operating : Typical 2.5W @5VDC with external Power supply Standby/Idle: Typical 2.5mA @ 5VDC |
| Drop Specification | Withstands repeated drops at 1.8 m to concrete |
| Environmental Sealing | IP42 |
| ESD Protection | Functional after 16kV Air discharge |
| Operating Environment | 0 to 50 °C RH 5% ~ 90% non condensing |
| Storage Environment | -20 ~ 70 °C RH 5% ~ 90% non condensing |
| EMC/Safety Standards | UL 60950, CSA C22.2 No. 60950, IEC 60950 LED: IEC 60825-1 Class 1 |
| External Dimensions (WxDxH) | Scanner: 71 x 100 x 181mm Cradle: 99 x 56 x 186 mm |
| Weight | Reader 169g including battery Cradle: 246g |
