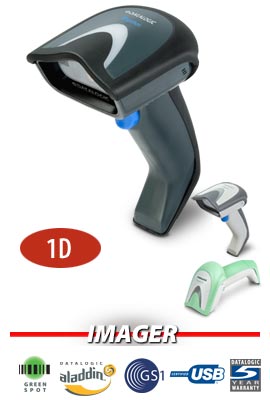

Datalogic GD4100
POSMarket SKU: Z2268
This model is available in 6 different configurations. Select a configuration below or contact our experts on 1300 737 998.
General Purpose Handheld Linear Imager...
Product Overview
Features
- Handheld Linear Imager Scanner
- Extremely snappy reading performance with speeds up to 325 reads/second
- Extended reading distances including up to 60.0 cm / 23.6 in for 13 mil UPC/EAN 13 labels
- Wide 42'' scan angle for reading wider codes
- Datalogic's patented "Green Spot'' for good-read feedback
- Supports GS1 DataBar linear codes
- Remote Host Download lowers service costs and improves operations (GD4110 Model)
- Multi-interface solutions support most popular interfaces including USB, RS-232, Keyboard Wedge, IBM 46XX and Wand
- IP52 Rating: Water and Particulate Sealing
- Drop resistance to 1.8 m
Product Specifications
| Scan Engine | CCD Solid State |
| Light Source | Dual LED Array 630-670nm |
| Scan Pattern | Single Line |
| Scan Rate | Up to 325 Reads/sec |
| Contrast Ratio | 15% minimum reflective difference |
| Resolution | Minimum 3 mil (Code 39, PCS 0.9) |
| Depth of field | 6.0 to 18 cm on 5 mils barcode 3.5 to 30 cm on 7.5 mils barcode 2.0 to 45 cm on 10 mils barcode 3.0 to 60 cm on 13 mils barcode 3.0 to 80 cm on 20 mils barcode |
| Tilt Angle | +/- 35 deg. |
| Pitch Angle | +/- 65 deg. |
| Skew Angle | +/- 65 deg. |
| Ambient Light Immunity | 0 ~ 100000 Lux |
| Symbologies supported | Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar linear codes Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar Stacked Omni-directional |
| Programming Method | Manual: Reading special bar codes Automatic: (with RS-232) S/W commands through the serial port ALADDIN: Windows configuration program |
| Driver available | JavaPOS, OPOS Utilities |
| Indicators/Controls | Scanner Indicators: Good Read LED "Green spot" on the code Adjustable tone beeper |
| Operating Modes | Trigger, Auto-trigger |
| Communication Type | Corded |
| Interfaces | GD4130: USB, RS232, Wedge & Wand Multi Interface GD4110: RS232, IBM 46XX, USB Multi Interface |
| Supply Voltage | GD4130: 4.75-5.25 VDC GD4110: 4.5-14.0 VDC |
| Power Consumption | GD4130: Operating typical 245mA @ 5V GD4110: Operating typical 225mA @ 5V Standby/Idle Typical 120 mA @ 5V |
| Drop Specification | Withstands repeated drops from 1.8 m onto concrete |
| Environmental Sealing | IP52 |
| ESD Protection | Functional after 16kV Air discharge |
| Operating Environment | 0 to 55 °C RH 0% ~ 90% non condensing |
| Storage Environment | -20 ~ 70 °C RH 0% ~ 90% non condensing |
| EMC/Safety Standards | UL 60950, CSA C22.2 No. 60950, IEC 60950 LED: IEC 60825-1 Class 1 |
| External Dimensions (WxDxH) | Scanner: 80 x 100 x 181mm |
| Weight | 169g |
