Datalogic DS-5100
POSMarket SKU: Z14152
931061344: DS5100-1200 Medium Range Linear Laser Serial

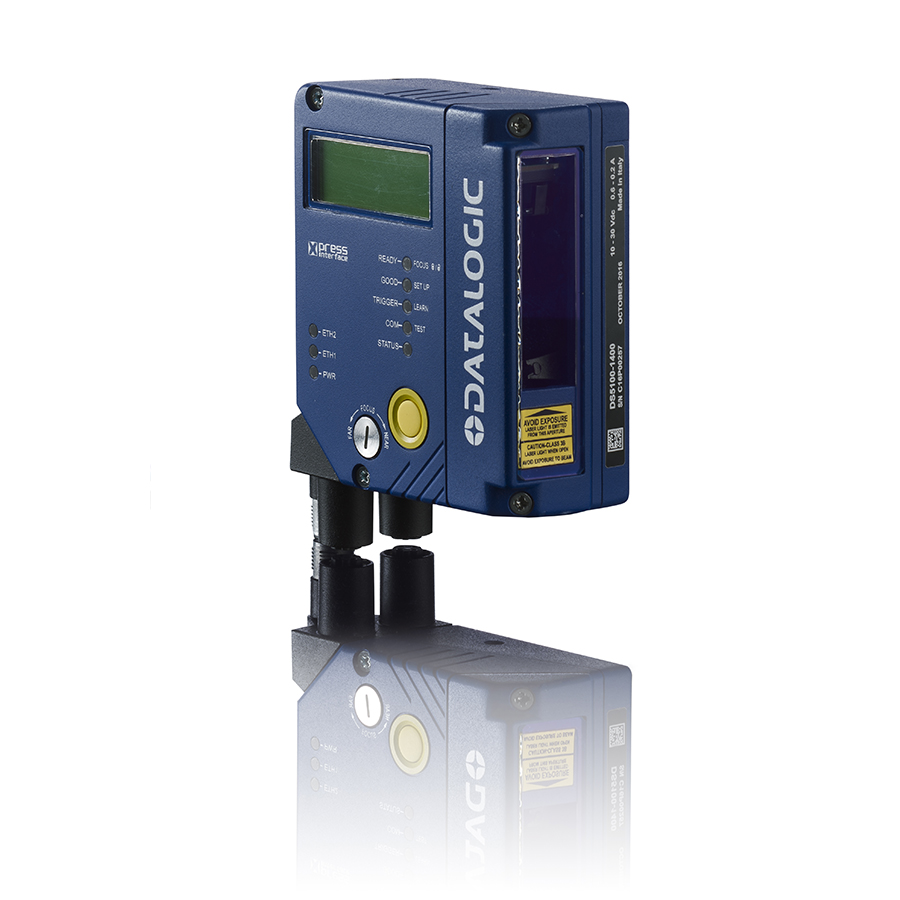

The Datalogic DS5100 is the new flexible, powerful and compact laser scanner. The DS5100 is a cost effective solution satisfying the main identification needs of Automotive, Food & Beverage, Pharmaceutical and other manufacturing plants. It offers a complete and flexible portfolio including Medium and Long Range models, Linear and Oscillating Mirror models.
Product Overview
- Medium, Long Range, Linear and Oscillating Mirror models, user selectable focus for high application flexibility
- ID-NET interface and Ethernet Bus Connections (EBC)
- Embedded PROFINET-IO and EtherNet/IP for connectivity to main industrial Fieldbus
- X-PRESS interface, Genius software tool, embedded multi-language display for easy scanner setup and maintenance
- Rotating connector block for flexible form factor and easy installation
- DST (Digital Signal Technology), ACR4 reconstruction technology and PACKTRACK tracking technology on Long Range
- Superior ambient light immunity from high frequency laser modulation
- Top industrial grade, IP65 and subzero version* for low temperature environments
Product Specifications
| Communication Interfaces: | Main port RS232/RS485-FD up to 115.2 Kbit/s
Auxiliary port RS232 up to 115.2 kbps ID-NET RS485 multidrop up to 1 Mbps EtherNet/IP, Modbus TCP, Ethernet TCP/IP, PROFINET-IO Class A |
| Digital Inputs: | 2 Input (optocoupled, NPN/PNP) |
| Digital Outputs: | 2 Outputs (optocoupled) |
| Reconstruction Code Technology: | ACR4 |
| Focus Adjustment: | Mechanically adjustable focus with locking |
| Optic Architecture/Technology: | ASTRA G3 |
| Bar Code Assignment Technology: | Packtrack tracking technology on Long Range models DS5100-24xx only when configured in an EBC network
(not available on Medium Range models) |
| Device Programming: | Genius (Windows based) software tool
Serial Host Mode Programming sequences XPRESS interface |
| Operating Modes: | On-line, Serial On-line, Automatic, Continuous, Test, Verifier, Packtrack tracking technology on Long Range when configured in an EBC network |
