CipherLab 1704
POSMarket SKU: Z4987
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

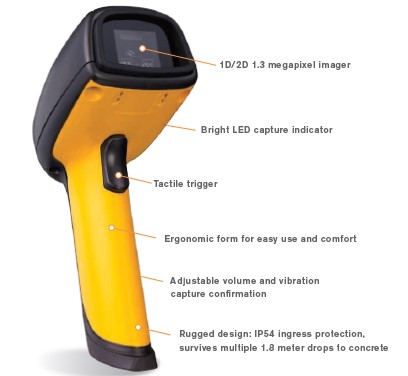

The CipherLab 1704 2D Scanner is a rugged solution for manufacturing warehousing logistics and any application where versatility and reliability are critical. Built to IP54 specifications the 1704 withstands repeated drops from 6 ft. 1.8 meters. The integrated 1.3-megapixel imager captures images as well as 1D and 2D codes an option allows capture of up to A4-size documents. Three modes of alerts give visual auditory or tactile confirmation of successful capture all contained in an ergonomic form factor that eases repetitive tasks.
Product Overview
Product Specifications
| GENERAL | ||
| Type | Barcode scanner - handheld | |
| Packaged Quantity | 1 | |
| Manufacturer | CipherLab | |
| INPUT DEVICE | ||
| Connectivity Technology | wired | |
| TTL Decoding | decoded | |
| PRINTER | ||
| Barcodes | Australian Post, Aztec code, Codabar, Code 11, Code 128, Code 39, Code 93, Data Matrix, Discrete 2 of 5, Interleaved 2 of 5, Japanese Post, MSI-Plessey, MaxiCode, PDF417, PLANET, Postnet, QR code, UCC/EAN-128, UK Post | |
| BARCODE | ||
| Interface | USB | |
| Light Source Wave Length | 630 nm | |
| Barcodes | Australian Post, Aztec code, Codabar, Code 11, Code 128, Code 39, Code 93, Data Matrix, Discrete 2 of 5, Interleaved 2 of 5, Japanese Post, MSI-Plessey, MaxiCode, PDF417, PLANET, Postnet, QR code, UCC/EAN-128, UK Post | |
| Print Contrast Signal (PCS) | 25% | |
| Skew (Degrees) | 60 | |
| Pitch (Degrees) | 65 | |
| Minimum Bar Width | 5 mil | |
| Features | Reduced Space Symbology (RSS) | |
| Frame Rate | 30 frames / sec | |
| Decode Capability | Code 93, Code 39, UCC/EAN-128, QR code, MaxiCode, Aztec code, Discrete 2 of 5, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, Japanese Post, UK Post | |
| Scan Mode | Single-pass | |
| Connectivity Technology | Wired | |
| Scan Element Type | 2D imager - red LED | |
| TTL Decoding | Decoded | |
| MISCELLANEOUS | ||
| Color | yellow | |
| Color Category | black, yellow | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 10 - 90% | |
| Min Operating Temperature | 14 F | |
| Max Operating Temperature | 131 F | |
| MANUFACTURER WARRANTY | ||
| Service & Support | Limited warranty - 3 years | |
| Type | 3 years warranty | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | handheld | |
| Scan Mode | single-pass | |
| Scan Element Type | 2D imager | |
| Sensor Resolution | 1280 x 1024 | |
| Frame Rate | 30 frames / sec | |
| Lamp / Light Source Type | red LED | |
| HEADER | ||
| Brand | CipherLab | |
| Product Line | CipherLab | |
| Mode | l1704 | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| DIMENSIONS AND WEIGHT | ||
| Weight | 10.79 oz | |
| INTERFACE REQUIRED | ||
| Type | USB | |
| Total Qty | 1 | |
| CABLE DETAILS | ||
| Type | USB cable | |
| Included Qty | 1 | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 10.79 oz | |
| SERVICE AND SUPPORT | ||
| Type | 3 years warranty | |
| SHOCK & VIBRATION TOLERANCE | ||
| Drop Specification | 5.9 ft | |
| SERVICE AND SUPPORT DETAILS | ||
| Type | limited warranty | |
| Full Contract Period | 3 years | |
| GENERAL | ||
| Manufacturer | CipherLab | |
