CipherLab 1166 Bluetooth
POSMarket SKU: Z4965
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

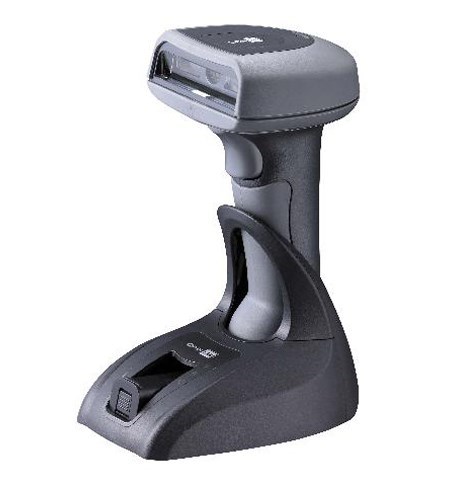

The CipherLab 1166 Bluetooth helps your staff do more for your customers and your business. Built with a safe linear imaging reader the 1166 Bluetooth scanner connects anywhere within 100 meters 328 ft. to go where the work and customers are. Even out of range it acquires data and later uploads it when back in range. And the 1166 Bluetooth makes your investment work for you by sharing its communication cradle with up to seven CipherLab Bluetooth scanners - efficiency and value are built right in.
Product Overview
- Linear imaging scanner with wireless connectivity up to 100 metres
- Capture up to 256 scans while out of range, or work in batch mode and store up to 8195 scans
- Share the 3666 communication cradle with up to seven CipherLab Bluetooth scanners
- Runs up to 39 hours or 28,000 scans on a single charge
- Includes ScanManager software
- Built for harsh environments, withstands multiple drops to concrete
- Supports multiple interfaces, communicates with any host with a Bluetooth profile
Product Specifications
| GENERAL | ||
| Packaged Quantity | 1 | |
| Manufacturer | Syntech Information Co., Ltd. | |
| INPUT DEVICE | ||
| Connectivity Technology | wireless | |
| TTL Decoding | decoded | |
| PRINTER | ||
| Barcodes | Codabar, Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, French Pharmacode, GS1 DataBar, ISBT 128, Industrial 2 of 5, Interleaved 2 of 5, Italy Pharmacode, MSI-Plessey, Matrix 2 of 5, Plessey, Telepen, UCC/EAN-128, UPC-A, UPC-E | |
| BARCODE | ||
| Scan Field Width | 0.79 in - 12.99 in | |
| Interface | Bluetooth | |
| Light Source Wave Length | 630 nm | |
| Barcodes | Codabar, Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, French Pharmacode, GS1 DataBar, ISBT 128, Industrial 2 of 5, Interleaved 2 of 5, Italy Pharmacode, MSI-Plessey, Matrix 2 of 5, Plessey, Telepen, UCC/EAN-128, UPC-A, UPC-E | |
| Print Contrast Signal (PCS) | 45% | |
| Skew (Degrees) | 70 | |
| Pitch (Degrees) | 70 | |
| Minimum Bar Width | 4 mil | |
| Min Scan Field | 0.79 in | |
| Max Scan Field | 12.99 in | |
| Features | Reduced Space Symbology (RSS) | |
| Decode Capability | Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, ISBT 128, GS1 DataBar, Telepen, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, French Pharmacode, Italy Pharmacode, Codabar, Code 128, Interleaved 2 of 5, MSI-Plessey, Plessey | |
| Scan Mode | Single-pass | |
| Scan Speed | 100 scan / sec | |
| Connectivity Technology | Wireless | |
| Scan Element Type | Linear imager - red LED | |
| TTL Decoding | Decoded | |
| BATTERY | ||
| Included | 1 | |
| NETWORKING | ||
| Wireless Connectivity | Bluetooth | |
| MISCELLANEOUS | ||
| Color | dark gray | |
| Color Category | gray | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 10 - 90% | |
| Min Operating Temperature | 32 degree F | |
| Max Operating Temperature | 122 degree F | |
| MANUFACTURER WARRANTY | ||
| Type | 3 years warranty | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | portable | |
| Scan Mode | single-pass | |
| Scan Element Type | linear imager | |
| Scan Speed | 100 scan/sec | |
| Lamp / Light Source Type | red LED | |
| HEADER | ||
| Brand | CipherLab | |
| Product Line | CipherLab | |
| Model | 1166 | |
| Packaged Quantity | 1 | |
| DIMENSIONS & WEIGHT | ||
| Weight | 7.05 oz | |
| INTERFACE REQUIRED | ||
| Type | USB | |
| Total Qty | 1 | |
| CABLE DETAILS | ||
| Type | USB cable | |
| Form Factor | external | |
| Included Qty | 1 | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 7.05 oz | |
| SERVICE & SUPPORT | ||
| Type | 3 years warranty | |
| SHOCK & VIBRATION TOLERANCE | ||
| Drop Specification | 4 ft to concrete | |
| SERVICE & SUPPORT DETAILS | ||
| Type | limited warranty | |
| Service Included | parts and labor | |
| Full Contract Period | 3 years | |
