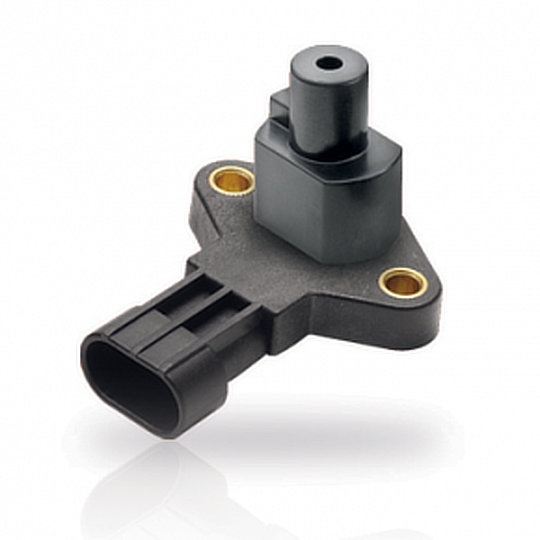

Cherry AN8 / AN9 Series
POSMarket SKU: Z20237
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Programmable, non-contact magnetic position sensors capable of continuous rotation
Product Overview
Non-contact, intrinsically linear contact angle position sensors with two independent outputs. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.
Features
- Angular position with high tolerance for misalignment
- Provides non-contact angular position sensing and full 360 ° rotation
- AN9 versions with dual (redundant) outputs assuring very high reliability
- 5 VDC ratiometric device.
- Sealed design exceeds IEC 60529 IP68 standard for immersion
- Performs with AS500106 standard magnetic carrier
- PWM output option available for custom applications
- Provided with EMI/ESD protection to SAE J1113 standards
- No mechanical interface means no parts to wear out
- Available with wire leads 12" (305 mm)
Product Specifications
| Manufacturer | ZF Electronics |
| Model | AN8 & AN9 |
| Mechanical Travel | 0 to 360 degrees (no stops) |
| Dither | No mechanical contact |
| Mating Connector | Connector: Delphi Metri-pak 150.2 12162185 Terminal: 12124075 |
| Maximum Air Gap | 5 mm |
| Maximum Center-to-Center Offset | 2 mm diameter (magnet to sensor) |
